Detailed features:

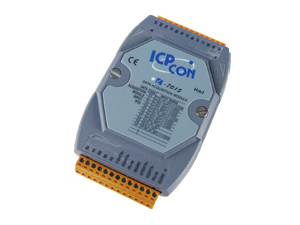

RTD Input Module
FeaturesInput Type : Supports 2/3 wire RTD
Input channel : 6
RTD Range : Pt100,Pt1000, Ni120, Cu100, Cu1000
Resolution : 16-bit
Accuracy : +/-0.05%
Sampling Rate : 12 samples/second (Total)
-3dB BandWidth : 5.24Hz
Common Mode Rejection : Typical 86dB
Voltage Input Impedance : >1M Ohms
Individual Channel Configurable
Wire Opening Detection
Isolation Voltage : 3000Vdc
Communication InterfaceRS-485
Power SupplyInput Voltage Range : +10~+30Vdc
Power Consumption :1.1W
RTD Input Module
Features
Communication Interface
Power Supply
Specifications:
Input Type
Supports 2/3 wire RTD
Input channel
6
Resolution
16-bit
Accuracy
±0.05%
Sampling Rate
12 samples/second (Total)
-3dB BandWidth
5.24Hz
