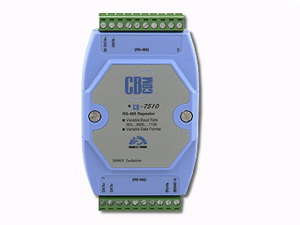

Isolated RS-485 Repeater for use with CB-COM series Feature:Self Tuner automatically sets baud rate to match the host computer 3000 VDC Isolation Allows 256 modules in a single CB COM network Specifications:Input: RS-485 protocol (two wire connects via screw terminals) Output: RS-485 protocol (two wire connects via screw terminals) Speed: “Self Tuner” auto switching baud rate, 300 to 115200 BPS Isolation: 3000VDC Power: 2.2W max from 10 to 30

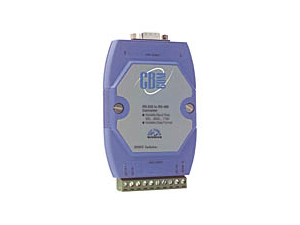

Isolated RS-232 to RS-485 Converter for use with CB-COM series Feature: Self Tuner automatically sets baud rate to match the host computer 3000 VDC Isolation Allows 256 modules in a single CB COM network Specifications: Input: RS-232 protocol Connector: Provides female 9-pin D Output: RS-485 protocol (two wire, D+, D-) Baud Rate: “Self Tuner” auto switching baud rate, 300 to 115200 BPS Modules: 256 modules max. in one RS-485 network without repeater 2048 modules max. with repeater Isolation: 3000VDC Line Length: 4,000 feet or over 256 modules Power: 2.2W max from 10 to 30 VDC

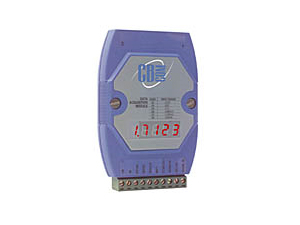

Single Channel Voltage or 4-20 mA Input Module Feature:Voltage or current inputs 16-bit conversions 1 digital input 2 digital outputs Specifications:Input type: mV, V , or mA Channels: 1 Input range: ±150mV, ±500mV, ±1V, ±5V, ± 10V and ±20mA Current range: ±20mA Sampling rate: 10 samples/sec Bandwidth: 4 Hz Accuracy: ±0.05% or better Zero drift: ±0.033 ppm/°C Span drift: 25ppm/°C CMR @ 50/60 Hz: 150 dB NMR @50/60 Hz: 100 dB Over voltage protection: ±10VGeneral Specifications:Display: LED: 4½ digit(I-7011D) Power consumption: 1.5WDigital Input:Channels: 1, Logic 0: 0 to 1V, Logic 1: 3.5V to 30VDigital Output:Channels: 2 Open collector to 30V, 30mA load max.

Single Channel RTD Input Module Feature:Voltage or current inputs 16-bit conversions 1 digital input 2 digital outputs 7013D displays voltage on 4.5 digit LED display CB-7013 Specifications:Channels: 1 Connection type: 2/3/4 wire RTD Types: Pt , Ni Sample rate: 10 samples/sec Bandwidth: 4 Hz Accuracy: ±0.05% or better Zero drift: ±0.3uV/°C Span drift: ±25ppm/°C CMR @ 50/60 Hz: 92 dB min NMR @50/60 Hz: 100 dB RTD temperature range: Pt100 -100°C to +100°C a=0.00385 Pt100 0°C to +100°C a=0.00385 Pt100 0°C to +200°C a=0.00385 Pt100 0°C to +600°C a=0.00385 Pt100 -100°C to +100°C a=0.003916 Pt100 0°C to +100°C a=0.003916 Pt100 0°C to +200°C a=0.003916 Pt100 0°C to +600°C a=0.003916 Ni120 -80°C to +100°C Ni120 0°C to +100°CGeneral Specifications:Power consumption: 2.2W

8 Channel Voltage or ±20 mA Input Module Feature:8 differential inputs Voltage or current inputs 10 samples/second (total) 16-bit conversions CB-7017 Specifications:Channels: 6 differential + 2 single-ended or 8 differential (jumper select) Input type: mV, V, mA Input range: ±150mV, ±500mV, ±1V, ±5V, ± 10V and ±20mA Resolution: 16-bits Sample rate: 10 sample/sec(total) Bandwidth: 13.1 Hz Accuracy: ±0.1% or better Zero drift: ±0.03uV/°C Span drift: ±25ppm/°C CMR @ 50/60 Hz: 92 dB min Over voltage protection: ±35VGeneral Specifications:Isolation voltage: 3000Vdc min Serial data rate: 1200, 2400, 4800,9600, 19200, 38400, 57600, 115200 Power required: +10 to +30V Power consumption: 2 W Operating temp: 14ºF to 158ºF Storage temperature: -13ºF to 185ºF Humidity: 5 to 95%, non-condensing

8 Channel Voltage and Thermocouple Input Module Feature:Supports 9 types of Thermocouple 16-bit conversions 8 input channels CB-7018 Specifications:Input type: Thermocouple, mV, V, or mA Channels: 8 Thermocouple types: J, -210°C to 760°C K, -270°C to 1372°C T, -270°C to 400°C E, -270°C to 1000°C R, 0°C-1768°C S, 0°C to 1768°C B, 0°C to 1820° N, -270°C to 1300°C C, 0°C to 2320°C Voltage ranges: ±15mV, ±50mV, ±100mV, ±500mV, ±1V, ±2.5V Current range: ±20mA Sampling rate: 10 samples/sec Bandwidth: 4 Hz Accuracy: ±0.05% or better Zero drift: ±0.033 ppm/°C Span drift: 25ppm/°C CMR @ 50/60 Hz: 150 dB NMR @50/60 Hz: 100 dB Over voltage protection: ±10VGeneral Specifications:Power consumption: 1 W Operating temp: 14ºF to 158ºF Storage temperature: -13ºF to 185ºF Humidity: 5 to 95%, non-condensing

8 Channel Voltage and Thermocouple Input Module with Extended Thermocouple Type Inputs Feature:Supports 11 types of Thermocouple 16-bit conversions 8 input channels CB-7018 Specifications:Input type: Thermocouple, mV, V, or mA Channels: 8 Thermocouple types: J, -210°C to 760°C K, -270°C to 1372°C T, -270°C to 400°C E, -270°C to 1000°C R, 0°C-1768°C S, 0°C to 1768°C B, 0°C to 1820° N, -270°C to 1300°C C, 0°C to 2320°C L, -200°C to 800°C M, -200°C to 100°C Voltage ranges: ±15mV, ±50mV, ±100mV, ±500mV, ±1V, ±2.5V Current range: ±20mA Sampling rate: 10 samples/sec Bandwidth: 4 Hz Accuracy: ±0.05% or better Zero drift: ±0.033 ppm/°C Span drift: 25ppm/°C CMR @ 50/60 Hz: 150 dB NMR @50/60 Hz: 100 dB Over voltage protection: ±10VGeneral Specifications:Power consumption: 1 W Operating temp: 14ºF to 158ºF Storage temperature: -13ºF to 185ºF Humidity: 5 to 95%, non-condensing

Single Channel Analog Voltage or Current Output Module Feature:Analog output module 12-bit conversions Analog read-back Programmable slew rate Voltage or 4-20 mA output CB-7021 Specifications:Output type: mV, V , or mA Channels: 1 Voltage range: 0 to 10 VDC Current ranges: 0 to 20 mA and 4 to 20 mA Accuracy: ±0.1% of FSR Zero drift: ±30 uV/°C (V out), ±0.2 uA/°C (I out) Span drift: 25ppm/°C Programmable Slew Rate Voltage mode: 0.0625 to 64.9 V/sec Current mode: 0.125 to 128 mA/sec Analog Readback Channels: 1 connected to output Accuracy: ±1% of FSRGeneral Specifications:Power consumption: 2 W Operating temp: 14ºF to 158ºF Storage temperature: -13ºF to 185ºF Humidity: 5 to 95%, non-condensing
