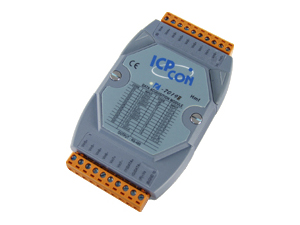

Industrial Automation | i-7000 modules & cards | I-7019R
Detailed features:
8-channel Universal Analog Input Module with High Voltage Protection
Analog InputInput Type: mV, V, mA,Thermocouple
Input Channels: 8 differential
Voltage range: !O 15mV,!O 50mV,!O 100mV, !O 150mV, !O 500mV, !O 1V, !O 2.5V, !O 5V, !O 10V
Current range: !O 20mA (jumper selectable)
Thermocouple Range : Type J, K, T, E, R, S, B, N, C, L, M, L2
Resolution : 16-bits
Sampling Rate : 8 samples/second (Total)
Accuracy : +/-0.15%
-3dB BandWidth : 5.24Hz
Common Mode Rejection : Typical 86dB
Voltage Input Impedance : >2M Ohms
Overvoltage Voltage Protection : +/-240Vrms
Individual Channel Configurable
Wire Opening Detection for Thermocouple
Isolation Voltage : 3000Vdc
Communication InterfaceRS-485
Power SupplyInput: +10 to +30Vdc
Consumption :1.2W
8-channel Universal Analog Input Module with High Voltage Protection
Analog Input
Communication Interface
Power Supply
Specifications:
Input Channels
8 differential
Thermocouple Range
Type J, K, T, E, R, S, B, N, C, L, M, L2
Resolution
16-bits
Sampling Rate
8 samples/second (Total)
Isolation Voltage
3000Vdc
Consumption
1.2W
