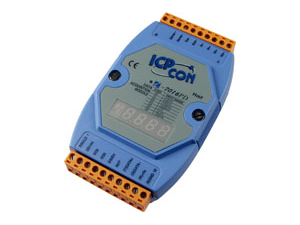

1-channel Strain Fauge Input Module with LED Display Analog Input Channels:1 Analog Input type : mV, V, mA Sampling Rate: 10 Samples/Second Resolution: 16-bit Bandwidth: 5.24Hz Accuracy: !O0.05% FSR Zero Drift: !O0.5￡gV/ ￠XC Span Drift: 25ppm/￠XC CMR @ 50/60Hz: 150dB NMR @ 50/60Hz: 100dB Input Impedance: 20M Ohms Isolation: 3000V rms Excitation Voltage Output Output Channels: 1 Output Range: 0 to +10V Resolution: 16-bit Max OUtput Load: 40mA Accuracy: !O0.05% of FSR Drift: !O50ppm/ ￠XC Output Impedance: 12 Ohms With voltage feedback Isolation: 3000V rms Digital Input Channel: 1 Logic Level 0: + 1V max Logic Level 1: + 3.5V to 30V Event Counter Max Input Frequency: 50Hz Min. Pulse Width:1 mS Digital Output Channels:4 Open Collector to 30V Output Load: sink 30mA max Power Dissipation: 30mW Display LED 4 1/2 digit LED display ( I-7016PD) Communication Interface RS-485 Power Supply Input Voltage Range : +10~+30Vdc Power Consumption : 2.4W for I-7016P 3.0W for I-7016PD

8-channel Analog Input Module Analog Input Channels: 8 differential or 6 differential and 2 single- ended by jumper select Resolution: 16-bit Input type: mV, V , mA (requires optional external 125 ohm resistor) Input range: !O 150mV, !O 500mV , !O 1V, !O 5V, !O 10V and !O 20mA Sample rate: 10 Samples/Second Bandwidth: 15.7 Hz Accuracy: !O 0.1% Zero drift: !O 20uV/￠XC Span drift: !O 25ppm/￠XC CMR @ 50/60 Hz: 86 dB min NMR @ 50/60 Hz: 100 dB Input Impedance: 20M Ohms Over voltage protection: !O 35V Isolation: 3000Vdc Communication Interface RS-485 Power Supply Input: +10 to +30Vdc Consumption :1.3W

8-channel Analog Input Module (Fast sampling version) Analog Input Channels: 8 differential or 6 differential and 2 single- ended by jumper select Resolution: 16-bit / 12-bit Input type: mV, V , mA (requires optional external 125 ohm resistor) Input range: !O 150mV, !O 500mV , !O 1V, !O 5V, !O 10V and !O 20mA Mode Sample rate: Normal mode: 16-bit 10 samples/second (total) Fast Mode: 12-bit 60 samples/second Bandwidth: 15.7Hz (normal) 78.7Hz (Fast) Accuracy: !O 0.1% (Normal) !O 0.5% (Fast) Zero drift: !O 20uV/￠XC Span drift: !O 25ppm/￠XC CMR @ 50/60 Hz: 86 dB min NMR @ 50/60 Hz: 100 dB Over voltage protection: !O 35V Communication Interface RS-485 Power Supply Input: +10 to +30Vdc Consumption :1.3W

8-channel Analog Input Module (Current input version) Analog Input Input Range: +/- 20mA (no external resistor required ) Channels: 8 differential Sample rate: 10 samples/second Bandwidth: 15.7 Hz Accuracy: !O 0.1% Zero drift: !O 20uV/￠XC Span drift: !O 25ppm/￠XC CMR @ 50/60 Hz: 86 dB min NMR @ 50/60 Hz: 100 dB Input Impedance: 125 Ohms Over voltage protection: !O 35V Isolation: 3000Vdc Communication Interface RS-485 Power Supply Input: +10 to +30Vdc Consumption :1.3W

8-channel Analog Input Module (Robust version) Features Photo-isolation: 3000 Vrms Indication LED Light for power and communication Channels: 8 differential Resolution: 12-bit/16-bit Input type: mV, V , mA Input range: !O 500mV, !O 1V, !O 5V, !O 10V and !O 20mA (requires optional external 125 ohm resistor) Input impedance: 2M Sample rate: 60/10 samples/second (total) Bandwidth: 13.1 Hz Accuracy: !O 0.1% or better Drift: !O 10uV/￠XC CMR @ 50/60 Hz: 86dB Typical Over voltage protection: 240Vrms Communication Interface RS-485 Power Supply Input: +10 to +30Vdc Consumption :1.3W

8-channel Analog Input Module (Current input version) Analog Input Input Range: +/- 20 mA (no external resistor required ) Channels: 8 differential Sample rate: 60/10 samples/second Input impedance: 2M Bandwidth: 13.1 Hz Accuracy: !O 0.1% or better Drift: !O 10uV/￠XC CMR @ 50/60 Hz: 86dB Typical Over voltage protection: 240Vrms Photo-isolation: 3000 Vrms Communication Interface RS-485 Power Supply Input: +10 to +30Vdc Consumption :1.3W

8-channel Analog Input Module Analog Input Photo-isolation: 3750 Vrms Type: mV, V , mA (requires optional external 125 ohm resistor) Thermocouple: Type J, K, T, E, R, S, B, N, C Channels : 8 differential or 6 differential and 2 single-ended by jumper select Voltage range: !O15mV, !O 50mV , !O 100mV, !O 500mV, !O 1V, !O 2.5V Current range: !O 20mA Sampling rate: 10 Samples/Second Bandwidth: 15.7 Hz Accuracy: !O 0.1% Zero drift: !O 25uV/￠XC CMR @ 50/60 Hz: 150 dB NMR @ 50/60 Hz: 100 dB Span drift: 25ppm/￠XC Over voltage protection: !O 35V Isolation: 3000Vdc Communication Interface RS-485 Power Supply Input: +10 to +30Vdc Consumption :1.0W

8-channel Analog Input Module Analog Input Photo-isolation: 3750 Vrms Type: mV, V , mA (requires optional external 125 ohm resistor) Thermocouple: Type J, K, T, E, R, S, B, N, C, L, M Channels : 8 differential or 6 differential and 2 single-ended by jumper select Voltage range: !O15mV, !O 50mV , !O 100mV, !O 500mV, !O 1V, !O 2.5V Current range: !O 20mA Sampling rate: 10 Samples/Second Bandwidth: 15.7 Hz Accuracy: !O 0.1% Zero drift: !O 25uV/￠XC CMR @ 50/60 Hz: 150 dB NMR @ 50/60 Hz: 100 dB Span drift: 25ppm/￠XC Over voltage protection: !O 35V Isolation: 3000Vdc Communication Interface RS-485 Power Supply Input: +10 to +30Vdc Consumption :1.0W
