PC/104 48 Bit Digital I/O Module (W/O Cable) 48 bit digital I/O lines (2 groups)Group emulates a 8225 PPI mode 0Buffered circuits for higher drive capacity than 8255Bit 0 of port C can generate an interrupt to IRQ 2,3,4,5,6 or 7Interrupt trigger on rising/falling edgeOutput status read backPin-compatible with Opto-22 I/O module racksTransfer rates: 300 KB/sec (typical)Digital output: Logic level 0: 0.5V max @ 24mA Logic level 1: 2.0V min @ 15mADigital input: Logic level 0: 0.8V MaxLogic level 1:2.0V minBus Interface PC/104 standard compliantConnector 50-pin box header for I/O portPower Requirements Single +5V@600mADimensions 90(L) x 96(W)mm , (3.54" x 3.78")Weight 95gOperating Temperature -20~+ 50￠XC

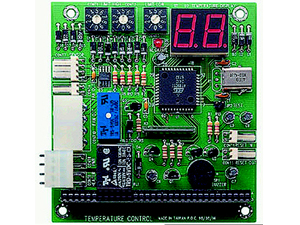

PC/104 Thermal Controller Module FeaturesSimply by adding this PC/104 module you will be able to extend the acceptable temperature range outside your system to -40￠XC ~ +90￠XC.The ICOP-1300 is capable of measuring your systems temperature and takes decisive action to keep its temperature within preset boundaries. The module has temperature measurement circuitry onboard that can regulate a power source for a heavy duty cooling fan and a power relay for a heating device. This enables you to use your system under temperature conditions that before where off limits.When the internal temperature reaches a preset value, the module will generate a sustained RESET, which will effectively disable your system and will sound an audible alarm to indicate that the system is temporarily offline. Lower level and upper level presets can be configured from 0~9￠XC and 0~99￠XCThe cooling fans 12 V power source comes from the system's standard power supply. The power relay for the heating device can support up to 1500 WattDimensions90(L) x 96(W)mm , (3.54" x 3.78")Weight 80gOperating Temperature -40~+80￠XC

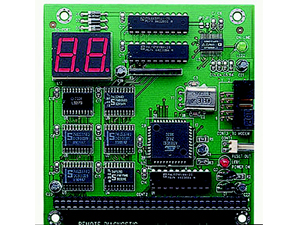

PC/104 Remote Diagnostic Moudle FeaturesThe ICOP-1400 is a stand-alone device that independently can monitor the hardware / software state of your system. Its most simple function is to report POST codes during system boot up. Built-in logic together with a serial interface let the module be controlled remotely through a standard dialup connection. Diagnostic information is send through the dialup connection and matched with a BIOS database to give a clear text information rather than codes. The remote user can reset the main system by issuing commands remotely through the dialup connection.Besides hardware diagnostics, the module can survey a running system by monitoring the system I/O channels. It can either monitor the system standard I/O ports (RS-232 etc) or can use non-assigned I/O ports as interfaces to transfer information between the software and diagnostic module.The ability to remotely debug a running system has a wide field of application. At the stage of the system developing, this can be extremely helpful. However the most important feature of remote debugging is that it will reduce the maintenance costs of a system dramatically since an engineer can dial-in to a system from his own workplace.Dimensions90(L) x 96(W)mm , (3.54" x 3.78")Weight 60g

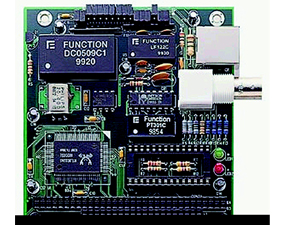

PC/104 Ethernet Module ChipsetRealtek 8019AS Single chipFull-duplex transfer mode, doubles effective BandwidthNE2000 compatible with built in 16 KB RAM buffer Jumper select, Jumper less or Plug & Play mode Auto sensing media:BNC (10 BASE-2) or RJ-45 (10 BASE-T)Throughput: 10 MbpsIRQ: 2(9), 3,4,5,10,11,12 or 15I/O address: 200h, 220h, 240h, 260h, 280h, 2AOh, 2COh 2EOh, 300h, 320h,340h, 360h, 380h, 3AOh, 3COh, 3EOhBoot ROM address: C800, CC00, D000, D800, DC00 Hax8/16-bit data bus auto sensingBuilt-in boot ROM functionBus Interface PC/104 standard compliantConnector BNC connector for 10 BASE-2RJ-45 connector for 10 BASE-TPower Requirements Single 5V @ 200 mADimensions90 (L) x 96 (W) mm (3.54" x 3.78")Weight 90 gOperating Temperature 0~+60￠XC

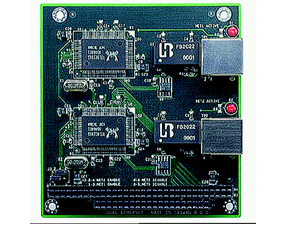

PC/104 Dual Ethernet Module ChipsetRealtek 8019AS single chipFull-duplex transfer mode, doubles effective bandwidthNE2000 compatible with built in 16 KB RAM buffer Jumperless or Plug&Play modeThroughput: 10 Mbps8/16-bit data bus auto sensingBus InterfacePC/104 standardConnectorTwo RJ-45 connector for 10BASE-T PowerPower RequirementsSingle 5V @ 120 mADimensions90 (L) x 96 (W) mm , (3.54" x 3.78")Weight 70gOperating Temperature 0~+60￠XC

PC/104 Multi RS-232 Module (W/O Cable) Chipset4 RS-232C asynchronous ports 4 x 16550 UARTsSupports: TxD, RxD, RTS, CTS, DTR, DSR, DCD, GNDInterrupt select: 2, 3, 4, 5, and 7RS-232 modem control signalsI/O address: l00h to 300hBaud rate:up to 115.2 KbpsBus Interface PC/104 standard compliantConnector 10-pin box header for RS232 ports X 4Power Requirements Single +5V @ 200 mADimensions 90 (L) x 96 (W) mm , (3.54" x 3.78")Weight 100gOperating Temperature -20~+55￠XC

PC/104 One Slot PCMCIA With Extension Comply with PCMCIA V.2.10 and JEIDA 4.1 specificationSupport each slot accept type I/II/III card and I/O cards16-bit data busWith 50 pins x 2 connectors can be connected to extension boxesProgrammable 32KB SMD-type boot Flash BIOSBusy status LED82C772G chipsBusy status LEDSingle Power Supply: +5V @ 70mASupport Read/Write Flash card for FFS II and TFFSSupport bootable function from SRAM card, ATA Flash card and ATA Hard Disk DrivesWeight 80gDimensions: 90(L) x 96(W)mm (3.54" x 3.78")

PC/104 One Slot PCMCIA to IDE ATA to standard IDE interfaceSupport one PCMCIA slot40 and 44 pins IDE and 4 pins power ConnectorsSupport Type I/II/III ATA Flash, ATA HDD, Compact Flash cards (an adaptor required)Standard PC/104 form factorPower Consumption +5V @ 70 mA (typical)Operating Temperature: 0 - 70 ￠XCOptional hot-swappableWeight: 75gDimensions: 90(L) x 96(W)mm (3.54" x 3.78")
