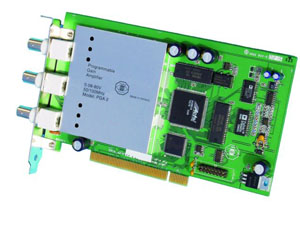

PC Based Instruments | Oscilloscope | TP801 AWG PCI (Discontinued)
Detailed features:
The TP801 AWG is the first PCI card based 100 Mega samples per second measuring instrument that consists of a MOST (Multimeter, Oscilloscope, Spectrum analyzer and Transient recorder) and an AWG (Arbitrary Waveform Generator). This new MOST measuring instrument can solve almost every measurement problem. With the integrated AWG you can generate every signal you want, independently from the measurements.
The TP801 AWG is the first PCI card based 100 Mega samples per second measuring instrument that consists of a MOST (Multimeter, Oscilloscope, Spectrum analyzer and Transient recorder) and an AWG (Arbitrary Waveform Generator). This new MOST measuring instrument can solve almost every measurement problem. With the integrated AWG you can generate every signal you want, independently from the measurements.
Specifications:
Resolution
8 bits Resolution
Sampling Rate
Max. sampling 100 MS/s
# of Analog Inputs
2
# of Analog Output
1 Analog Output, AWG
Bus Type
PCI BUS
