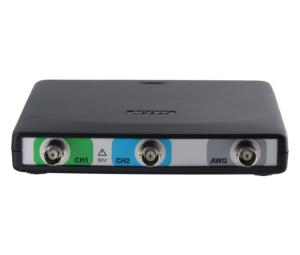

HandyScope HS5-220-W5 - 200MS/s model, with extended warranty to 5 years on all labor and parts, excluding probes Handyscope HS5 powerful high speed USB oscillocope combines fast sampling up to 500 MS/s with high résolutions of 12, 14 and 16 bit, a large memory of 64 MSamples and an extremely accurate built-in 40 MHz 14 bit Constant Data Size (CDS) arbitrary waveform generator with 24 V peak to peak output, generating true form signals. The oscilloscope supports continuous streaming measurements up to 20 MS/s and can be synchronized with other oscilloscopes using the CMI interface to form a multi channel combined instrument with synchronized time base. The CMI interface is available by default on the Handyscope HS5 The HandyScope HS5 comes standard with the versatile Multi Channel software that allows to do measurements in a quick and convenient way. With the software, the HandyScope HS5 can be operated as: storage oscilloscope spectrum analyzer voltmeter transient recorder function generator The captured data can be viewed in many different ways, in a single graph or in multiple views, each displaying the required property of the measured data. If you want to use The Handyscope HS5 (remotely) via a network connection, transform the Handyscope HS5 to a network oscilloscope using an Instrument Sharing Server with TPISS installed. View info about TPISSclick here MULTI INSTRUMENT SYNCHRONISATION The Handyscope HS5 is equipped with a sophisticated CMI synchronization bus, allowing to connect multiple Handyscope HS5s to each other by means of coupling cables, to use them as a combined instrument. All instruments will measure at the same sample frequency (0 ppm deviation!) Apart from a synchronization bus, the CMI also contains a trigger bus and a detection bus. The maximum number of instruments is only limited by the number available USB ports. *learn more about multi-instrument synchronizationclick here Base model: Handyscope HS5-540 Handyscope HS5-530 Handyscope HS5-220 Handyscope HS5-110 Handyscope HS5-055 *View all spécifications for HS5click here

HandyScope HS5-220XM - 200MS/s model 32ms/Ch option Handyscope HS5 powerful high speed USB oscillocope combines fast sampling up to 500 MS/s with high résolutions of 12, 14 and 16 bit, a large memory of 64 MSamples and an extremely accurate built-in 40 MHz 14 bit Constant Data Size (CDS) arbitrary waveform generator with 24 V peak to peak output, generating true form signals. The oscilloscope supports continuous streaming measurements up to 20 MS/s and can be synchronized with other oscilloscopes using the CMI interface to form a multi channel combined instrument with synchronized time base. The CMI interface is available by default on the Handyscope HS5 The HandyScope HS5 comes standard with the versatile Multi Channel software that allows to do measurements in a quick and convenient way. With the software, the HandyScope HS5 can be operated as: storage oscilloscope spectrum analyzer voltmeter transient recorder function generator The captured data can be viewed in many different ways, in a single graph or in multiple views, each displaying the required property of the measured data. If you want to use The Handyscope HS5 (remotely) via a network connection, transform the Handyscope HS5 to a network oscilloscope using an Instrument Sharing Server with TPISS installed. View info about TPISSclick here MULTI INSTRUMENT SYNCHRONISATION The Handyscope HS5 is equipped with a sophisticated CMI synchronization bus, allowing to connect multiple Handyscope HS5s to each other by means of coupling cables, to use them as a combined instrument. All instruments will measure at the same sample frequency (0 ppm deviation!) Apart from a synchronization bus, the CMI also contains a trigger bus and a detection bus. The maximum number of instruments is only limited by the number available USB ports. *learn more about multi-instrument synchronizationclick here Base model: Handyscope HS5-540 Handyscope HS5-530 Handyscope HS5-220 Handyscope HS5-110 Handyscope HS5-055 *View all spécifications for HS5click here

HandyScope HS5-220XM-W5 - 200MS/s model 32ms/Ch option, with extended warranty to 5 years on all labor and parts, excluding probes Handyscope HS5 powerful high speed USB oscillocope combines fast sampling up to 500 MS/s with high résolutions of 12, 14 and 16 bit, a large memory of 64 MSamples and an extremely accurate built-in 40 MHz 14 bit Constant Data Size (CDS) arbitrary waveform generator with 24 V peak to peak output, generating true form signals. The oscilloscope supports continuous streaming measurements up to 20 MS/s and can be synchronized with other oscilloscopes using the CMI interface to form a multi channel combined instrument with synchronized time base. The CMI interface is available by default on the Handyscope HS5 The HandyScope HS5 comes standard with the versatile Multi Channel software that allows to do measurements in a quick and convenient way. With the software, the HandyScope HS5 can be operated as: storage oscilloscope spectrum analyzer voltmeter transient recorder function generator The captured data can be viewed in many different ways, in a single graph or in multiple views, each displaying the required property of the measured data. If you want to use The Handyscope HS5 (remotely) via a network connection, transform the Handyscope HS5 to a network oscilloscope using an Instrument Sharing Server with TPISS installed. View info about TPISSclick here MULTI INSTRUMENT SYNCHRONISATION The Handyscope HS5 is equipped with a sophisticated CMI synchronization bus, allowing to connect multiple Handyscope HS5s to each other by means of coupling cables, to use them as a combined instrument. All instruments will measure at the same sample frequency (0 ppm deviation!) Apart from a synchronization bus, the CMI also contains a trigger bus and a detection bus. The maximum number of instruments is only limited by the number available USB ports. *learn more about multi-instrument synchronizationclick here Base model: Handyscope HS5-540 Handyscope HS5-530 Handyscope HS5-220 Handyscope HS5-110 Handyscope HS5-055 *View all spécifications for HS5click here

Add 4% to listed price for Tiepie's -W5 option, 5 Years extended warranty

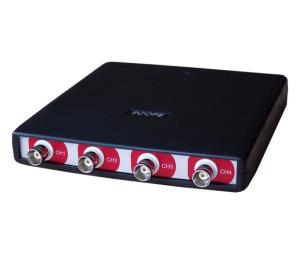

HS4-DIFF-10 The Handyscope HS4 DIFF is a 4 channel differential USB oscilloscope with a maximum sampling speed of 50MS/s and 128 KSamples memory per channel. The differential input channels enable safely measuring, without risk of creating a short circuit through the oscilloscope. The Handyscope HS4 DIFF is delivered with a complete measurement software package that offers all you need for your measurement applications. DIFFERENTIAL INPUTS The Handyscope HS4 DIFF features four isolated differential input channels. This makes it the ideal instrument to perform measurements in high voltage circuits, amplifiers, switch mode power supplies, power inverters, etc. No more risk of creating short circuits through your oscilloscope! combining multiple handyscope HS4s With the Multi Channel oscilloscope software, you are not limited to number of channels of one oscilloscope. It is possible to combine two or more oscilloscopes to form a combined instrument. Once the instruments are combined, the resulting single oscilloscope works just like a normal oscilloscope. There is no limit to the number of channels in a combined oscilloscope. Combining is possible with the following instruments: * Wifiscope WS6 * Wifiscope WS5 * Handyscope HS6 DIFF * Handyscope HS5 * Handyscope HS4 DIFF * Handyscope HS4 * Handyscope HS3 (from serial number 14266) View all ways to combine instruments click here Base model: Handyscope HS4-DIFF-50 50 MS/s model Handyscope HS4-DIFF-25 25 MS/s model Handyscope HS4-DIFF-10 10 MS/s model Handyscope HS4-DIFF-5 5 MS/s model View full specifications of HS4-DIFFclick here

HS4-DIFF-25 The Handyscope HS4 DIFF is a 4 channel differential USB oscilloscope with a maximum sampling speed of 50MS/s and 128 KSamples memory per channel. The differential input channels enable safely measuring, without risk of creating a short circuit through the oscilloscope. The Handyscope HS4 DIFF is delivered with a complete measurement software package that offers all you need for your measurement applications. DIFFERENTIAL INPUTS The Handyscope HS4 DIFF features four isolated differential input channels. This makes it the ideal instrument to perform measurements in high voltage circuits, amplifiers, switch mode power supplies, power inverters, etc. No more risk of creating short circuits through your oscilloscope! combining multiple handyscope HS4s With the Multi Channel oscilloscope software, you are not limited to number of channels of one oscilloscope. It is possible to combine two or more oscilloscopes to form a combined instrument. Once the instruments are combined, the resulting single oscilloscope works just like a normal oscilloscope. There is no limit to the number of channels in a combined oscilloscope. Combining is possible with the following instruments: * Wifiscope WS6 * Wifiscope WS5 * Handyscope HS6 DIFF * Handyscope HS5 * Handyscope HS4 DIFF * Handyscope HS4 * Handyscope HS3 (from serial number 14266) View all ways to combine instruments click here Base model: Handyscope HS4-DIFF-50 50 MS/s model Handyscope HS4-DIFF-25 25 MS/s model Handyscope HS4-DIFF-10 10 MS/s model Handyscope HS4-DIFF-5 5 MS/s model View full specifications of HS4-DIFFclick here

HS4-DIFF5 The Handyscope HS4 DIFF is a 4 channel differential USB oscilloscope with a maximum sampling speed of 50MS/s and 128 KSamples memory per channel. The differential input channels enable safely measuring, without risk of creating a short circuit through the oscilloscope. The Handyscope HS4 DIFF is delivered with a complete measurement software package that offers all you need for your measurement applications. DIFFERENTIAL INPUTS The Handyscope HS4 DIFF features four isolated differential input channels. This makes it the ideal instrument to perform measurements in high voltage circuits, amplifiers, switch mode power supplies, power inverters, etc. No more risk of creating short circuits through your oscilloscope! combining multiple handyscope HS4s With the Multi Channel oscilloscope software, you are not limited to number of channels of one oscilloscope. It is possible to combine two or more oscilloscopes to form a combined instrument. Once the instruments are combined, the resulting single oscilloscope works just like a normal oscilloscope. There is no limit to the number of channels in a combined oscilloscope. Combining is possible with the following instruments: * Wifiscope WS6 * Wifiscope WS5 * Handyscope HS6 DIFF * Handyscope HS5 * Handyscope HS4 DIFF * Handyscope HS4 * Handyscope HS3 (from serial number 14266) View all ways to combine instruments click here Base model: Handyscope HS4-DIFF-50 50 MS/s model Handyscope HS4-DIFF-25 25 MS/s model Handyscope HS4-DIFF-10 10 MS/s model Handyscope HS4-DIFF-5 5 MS/s model View full specifications of HS4-DIFFclick here

HS4-DIFF-50 The Handyscope HS4 DIFF is a 4 channel differential USB oscilloscope with a maximum sampling speed of 50MS/s and 128 KSamples memory per channel. The differential input channels enable safely measuring, without risk of creating a short circuit through the oscilloscope. The Handyscope HS4 DIFF is delivered with a complete measurement software package that offers all you need for your measurement applications. DIFFERENTIAL INPUTS The Handyscope HS4 DIFF features four isolated differential input channels. This makes it the ideal instrument to perform measurements in high voltage circuits, amplifiers, switch mode power supplies, power inverters, etc. No more risk of creating short circuits through your oscilloscope! combining multiple handyscope HS4s With the Multi Channel oscilloscope software, you are not limited to number of channels of one oscilloscope. It is possible to combine two or more oscilloscopes to form a combined instrument. Once the instruments are combined, the resulting single oscilloscope works just like a normal oscilloscope. There is no limit to the number of channels in a combined oscilloscope. Combining is possible with the following instruments: * Wifiscope WS6 * Wifiscope WS5 * Handyscope HS6 DIFF * Handyscope HS5 * Handyscope HS4 DIFF * Handyscope HS4 * Handyscope HS3 (from serial number 14266) View all ways to combine instruments click here Base model: Handyscope HS4-DIFF-50 50 MS/s model Handyscope HS4-DIFF-25 25 MS/s model Handyscope HS4-DIFF-10 10 MS/s model Handyscope HS4-DIFF-5 5 MS/s model View full specifications of HS4-DIFFclick here
