USB-based DAQ module with 8 channels of 12-bit analog input, 1.2 kS/s, two D/A outputs and 16 DIO bits Hardware: Eight single-ended or four differential 12-bit analog inputs Two 10-bit analog outputs One 32-bit external event counter 16 digital I/O lines External trigger input Powerful DAQ software included with hardware - TracerDAQTM, professional grade strip chart recorder and data logger application - SoftWIRE®, graphical programming interface for Visual Studio® .NET - Universal Library programming language support for Windows languages - LabVIEWTM Drivers and VIs

USB-based DAQ module with 8 analog input channels, up to 12-bit resolution, 50 kS/s, two D/A outputs and 16 DIO bits Hardware: 4 differential/8 single-ended analog inputs 50 kilosample/second sample rate 2 analog outputs 16 bits of DIO PDF SPECS SHEETS Powerful DAQ software included with hardware: - TracerDAQTM, professional grade strip chart recorder and data logger application - SoftWIRE®, graphical programming interface for Visual Studio® .NET - Universal Library programming language support for Windows languages - LabVIEWTM Drivers and VIs

USB-based digital I/O module with 24 high current (64mA sink, 15mA source) digital I/O bits Hardware: 24 bits DIO High current outputs (15mA source, 64mA sink) One 32-bit external event counter Powerful DAQ software included with hardware: - TracerDAQTM, professional grade strip chart recorder and data logger application - SoftWIRE®, graphical programming interface for Visual Studio® .NET - Universal Library programming language support for Windows languages - LabVIEWTM Drivers and VIs

USB-based, 24-bit digital I/O module Hardware: 24 bits DIO Based on industry standard 82C55 One 32-bit external event counter Powerful DAQ software included with hardware: - TracerDAQTM, professional grade strip chart recorder and data logger application - SoftWIRE®, graphical programming interface for Visual Studio® .NET - Universal Library programming language support for Windows languages - LabVIEWTM Drivers and VIs

USB-based DAQ device with 8 channels of 12-bit analog input, two analog outputs and 28 DIO bits Hardware: Eight single-ended or four differential 12-bit analog inputs Two 10-bit analog outputs 28 bi-directional digital I/O lines (24 through standard 37-pin connector; 4 through screw terminals) One 32-bit external event counter User configurable watchdog timer Powerful DAQ software included with hardware: - TracerDAQTM, professional grade strip chart recorder and data logger application - SoftWIRE®, graphical programming interface for Visual Studio® .NET - Universal Library programming language support for Windows languages - LabVIEWTM Drivers and VIs

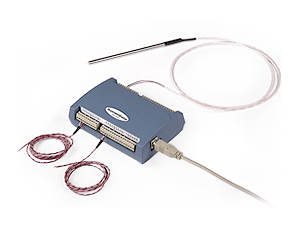

USB-based 8-channel temperature measurement module supports 4 sensor types Hardware: 8 input channels 4 sensor types: - Thermocouples J, K, R, S, T, N, E, and B - RTDs (2-, 3- or 4-wire) - Thermistors - Semiconductor temperature sensors Built-in ambient temperature sensor Independent temp inputs 8 digital I/O bits Powerful DAQ software included with hardware: - TracerDAQTM, professional grade strip chart recorder and data logger application - SoftWIRE®, graphical programming interface for Visual Studio® .NET - Universal Library programming language support for Windows languages - LabVIEWTM Drivers and VIs

USB-based 8 Form C Relays and 8 High Voltage Inputs Hardware: Integrated signal coditioning 8 Isolated digital inputs (VAC or VDC) 8 Form-C relays (6 Amps at 240 VAC / 28 VDC contact ratings) Exclusive USB expansion port allows daisy-chaining of multiple units Powerful DAQ software included with hardware: - TracerDAQTM, professional grade strip chart recorder and data logger application - SoftWIRE®, graphical programming interface for Visual Studio® .NET - Universal Library programming language support for Windows languages - LabVIEWTM Drivers and VIs

USB-based 8 channel electromechanical relay interface Hardware: 8 electromechanical relays 6 Amp (@240VAC/28VDC resistive), FORM C (SPDT) relays Exclusive USB expansion port allows daisy-chaining of multiple units Powerful DAQ software included with hardware: - TracerDAQTM, professional grade strip chart recorder and data logger application - SoftWIRE®, graphical programming interface for Visual Studio® .NET - Universal Library programming language support for Windows languages - LabVIEWTM Drivers and VIs
