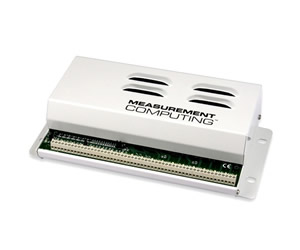

Expansion Module for USB-1616HS Series - Adds 24 Analog DI or 48 SE Inputs to USB-1616HS - Any input can be a voltage or thermocouple - Convenient removable screw terminal connections

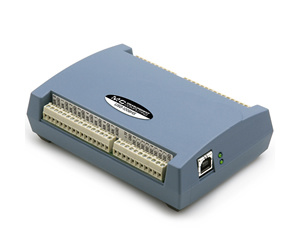

USB-based high-speed multifunction device with eight 13-bit, 1 MS/s analog inputs and four 12-bit, 1 MS/s analog outputs 8 single-ended/4 differential analog inputs 13-bit resolution 1 MS/s sample rate Single-ended ranges: ±10 V, ±5 V, ±2.5 V or 0 to10 V Differential ranges: ±20 V, ±10 V, or ±5 V 16 digital I/O lines Two 32-bit counters One 32-bit PWM timer output Four 12-bit, ±10 V analog outputs with 1 MS/s update rate USB-bus power

USB-based DAQ device with eight 16-bit simultaneous sampling analog inputs and 16 digital I/O lines 16-bit resolution 8 channels of analog input—differential or single-ended 250 kS/s per channel (2 MS/s aggregate) 32-bit event counter Analog trigger input 16 digital I/O—LED status indicators Simultaneous sampling (1 A/D converter per input

Stand-alone, high-speed 200 kS/s, multifunction data logger; includes a 4 GB SD memory card, USB cable, and external power supply Up to 200 kS/s correlated sampling of all data 16 analog inputs up to ±30 V 16-bit resolution 16 digital inputs up to 28 V Single Form C relay digital output configurable for triggering/alarming 4 quadrature/conventional counter inputs Detachable screw terminals 4 GB SD™ memory card included, supports up to 32 GB Multi-channel analog/digital triggering Push-button controls for field operation

Stand-alone, high-speed 200 kS/s, multifunction data logger with isolated digital inputs; includes a 4 GB SD memory card, USB cable and external power supply Up to 200 kS/s correlated sampling of all data 16 analog inputs up to ±30 V 16-bit resolution 16 industrial digital inputs up to 30 V (500 VDC isolation Single Form C relay digital output configurable for triggering/alarming 4 quadrature/conventional counter inputs Detachable screw terminals 4 GB SD™ memory card included, supports up to 32 GB Multi-channel triggering Push-button controls for field operation

Termination board with screw terminals (mates directly onto USB2500 series boards)

USB-based DAQ board with 16 SE/8 DIFF analog inputs, 1 MS/s sample rate, 24 digital I/O, four 32-bit counters, and four thermocouple inputs 16-bit resolution 2 timer outputs Up to four of the analog inputs configurable as differential thermocouple (TC) inputs Up to 12 MS/s scanning on all digital input lines 16 SE/8 DIFF analog inputs Synchronous operation of all analog I/O, digital I/O, and counter/timer I/O 24 digital I/O 4 counter inputs capable of measuring frequency, period, pulse width, or quadrature encoders up to 20 MHz 1 MS/s sample rate Seven software-selectable analog input ranges of ±10 V, ±5 V, ±2 V, ±1 V, ±0.5 V, ±0.2 V,and ±0.1 V

USB-based DAQ board with 64 SE/32 DIFF analog inputs, 1 MS/s sample rate, four 16-bit 1 MS/s analog outputs, 24 digital I/O, four 32-bit counters, and 4 thermocouple inputs 16-bit resolution 2 timer outputs Up to four of the analog inputs configurable as differential thermocouple (TC) inputs Up to 12 MS/s scanning on all digital input lines Four 1 MS/s, 16-bit analog outputs Synchronous operation of all analog I/O, digital I/O, and counter/timer I/O 24 digital I/O 4 counter inputs capable of measuring frequency, period, pulse width, or quadrature encoders up to 20 MHz 1 MS/s sample rate Seven software-selectable analog input ranges of ±10 V, ±5 V, ±2 V, ±1 V, ±0.5 V, ±0.2 V,and ±0.1 V 64 SE/32 DIFF analog inputs
