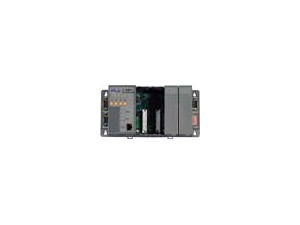

I-8431 embedded controller Introduction The I-8431/ I-8831 are Ethernet embedded controller with 4/8 I/O slots. Both are equipped with MiniOS7,an embedded OS similar to DOS that is developed by ICPDAS Co., LTD. The MiniOS7 can boot up in a very short time (0.4~0.8 second). It has built-in hardware diagnostic function, and supports the full functions to access all 8K and 87K series I/O modules, such as DI, DO, DIO, AI, AO, Counter/Frequency, motion modules etc. To simplify the TCP/IP program developing process, we designed a XServer architecture. It is a reliable, opened, expandable, all purposed,and easily to be used library. The Xserver implements 90% functionalities of Ethernet communication. Refer the rich demo programs we provided, software engineer can easily finish the 10% remaining funtionalities and greatly shorten the developing time.¡@¡@ The I-8431/I-8831 can be used in remote data acquisition and control applications, including environment monitoring, power management and factory automation. Features Equipped with MiniOS7, ,an embedded OS similar to DOS that is developed by ICP DAS Co., LTD.  Support IPv4. Provides full C library functions such as 8K, 87K I/O, 7-segment LED, RTC (real time clock), EEPROM etc. Firmware can be updated via the RS-232 port. The XServer architecture greatly simplify the programming of TCP/IP protocol. Supports the VxComm technique for all ports (RS-232 and Ethernet). Provides a hardware serial number or an ASICKey to protect designated systems. Compact I/O Expansion slot allows the quick installation of I/O modules. The built-in watchdog circuit will reset the CPU module if a failure occurs in either the hardware or software, allowing the controller system more reliable and stable in harsh and noisy environments. Dual Bus designed to support i-8K and i-87K series I/O modules, such as DI/DO, AI/AO, Counter/Frequency modules. Ventilated housing designed to operate between !V25￠XC to +75￠XC. Using DIN rail clips or Screw poles around the corners allows the control unit to be easily mounted on the control box. Specifications CPU: 80188 or compatible (16-bit and 40MHz) SRAM: 512KBytes Flash ROM : 512KBytes EEPROM: 2KBytes Built-in Watchdog Timer 64-bit hardware unique serial numbe Real time clock NVRAM : 31Byte Ethernet port : 10BaseT NE2000 compatible COM1: RS-232 (to update firmware) COM0 : for internal communication with the 87K modules connected to the slots COM3: RS-232/485  COM4: RS-232 SMMI (small man machine interface) 5-digits LED display 4 LED indicators 4 push buttons  I/O expansion slots: I-8431 : 4 slots  I-8831 : 8 slots   Power Power reverse polarity protection Power supply: 20W Power requirement: 10 ~ 30 V/DC Power consumption: I-8431 : 3.9 W I-8831 : 5.1 W Dimensions 230 x 110 x 75.5 mm (for 4-Slots) 354 x 110 x 75.5 mm (for 8-Slots) Operating Environment Operating Temp.: !V25￠XC to +75￠XC. Storage Temp.: !V30￠XC to +85￠XC Humidity: 5 ~ 95%,non-condensing

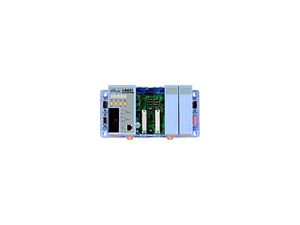

I-8431 embedded controller with gray color Introduction The I-8431/ I-8831 are Ethernet embedded controller with 4/8 I/O slots. Both are equipped with MiniOS7,an embedded OS similar to DOS that is developed by ICPDAS Co., LTD. The MiniOS7 can boot up in a very short time (0.4~0.8 second). It has built-in hardware diagnostic function, and supports the full functions to access all 8K and 87K series I/O modules, such as DI, DO, DIO, AI, AO, Counter/Frequency, motion modules etc. To simplify the TCP/IP program developing process, we designed a XServer architecture. It is a reliable, opened, expandable, all purposed,and easily to be used library. The Xserver implements 90% functionalities of Ethernet communication. Refer the rich demo programs we provided, software engineer can easily finish the 10% remaining funtionalities and greatly shorten the developing time.¡@¡@ The I-8431/I-8831 can be used in remote data acquisition and control applications, including environment monitoring, power management and factory automation. Features Equipped with MiniOS7, ,an embedded OS similar to DOS that is developed by ICP DAS Co., LTD. Support IPv4. Provides full C library functions such as 8K, 87K I/O, 7-segment LED, RTC (real time clock), EEPROM etc. Firmware can be updated via the RS-232 port. The XServer architecture greatly simplify the programming of TCP/IP protocol. Supports the VxComm technique for all ports (RS-232 and Ethernet). Provides a hardware serial number or an ASICKey to protect designated systems. Compact I/O Expansion slot allows the quick installation of I/O modules. The built-in watchdog circuit will reset the CPU module if a failure occurs in either the hardware or software, allowing the controller system more reliable and stable in harsh and noisy environments. Dual Bus designed to support i-8K and i-87K series I/O modules, such as DI/DO, AI/AO, Counter/Frequency modules. Ventilated housing designed to operate between !V25￠XC to +75￠XC. Using DIN rail clips or Screw poles around the corners allows the control unit to be easily mounted on the control box. Specifications CPU: 80188 or compatible (16-bit and 40MHz) SRAM: 512KBytes Flash ROM : 512KBytes EEPROM: 2KBytes Built-in Watchdog Timer 64-bit hardware unique serial numbe Real time clock NVRAM : 31Byte Ethernet port : 10BaseT NE2000 compatible COM1: RS-232 (to update firmware) COM0 : for internal communication with the 87K modules connected to the slots COM3: RS-232/485 COM4: RS-232 SMMI (small man machine interface) 5-digits LED display 4 LED indicators 4 push buttons I/O expansion slots: I-8431 : 4 slots I-8831 : 8 slots Power Power reverse polarity protection Power supply: 20W Power requirement: 10 ~ 30 V/DC Power consumption: I-8431 : 3.9 W I-8831 : 5.1 W Dimensions 230 x 110 x 75.5 mm (for 4-Slots) 354 x 110 x 75.5 mm (for 8-Slots) Operating Environment Operating Temp.: !V25￠XC to +75￠XC. Storage Temp.: !V30￠XC to +85￠XC Humidity: 5 ~ 95%,non-condensing

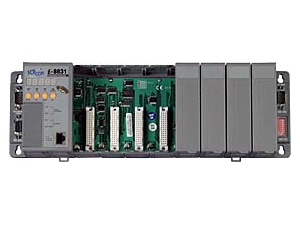

I-8831 embedded controller Introduction The I-8431/ I-8831 are Ethernet embedded controller with 4/8 I/O slots. Both are equipped with MiniOS7,an embedded OS similar to DOS that is developed by ICPDAS Co., LTD. The MiniOS7 can boot up in a very short time (0.4~0.8 second). It has built-in hardware diagnostic function, and supports the full functions to access all 8K and 87K series I/O modules, such as DI, DO, DIO, AI, AO, Counter/Frequency, motion modules etc. To simplify the TCP/IP program developing process, we designed a XServer architecture. It is a reliable, opened, expandable, all purposed,and easily to be used library. The Xserver implements 90% functionalities of Ethernet communication. Refer the rich demo programs we provided, software engineer can easily finish the 10% remaining funtionalities and greatly shorten the developing time.¡@¡@ The I-8431/I-8831 can be used in remote data acquisition and control applications, including environment monitoring, power management and factory automation. Features Equipped with MiniOS7, ,an embedded OS similar to DOS that is developed by ICP DAS Co., LTD. Support IPv4. Provides full C library functions such as 8K, 87K I/O, 7-segment LED, RTC (real time clock), EEPROM etc. Firmware can be updated via the RS-232 port. The XServer architecture greatly simplify the programming of TCP/IP protocol. Supports the VxComm technique for all ports (RS-232 and Ethernet). Provides a hardware serial number or an ASICKey to protect designated systems. Compact I/O Expansion slot allows the quick installation of I/O modules. The built-in watchdog circuit will reset the CPU module if a failure occurs in either the hardware or software, allowing the controller system more reliable and stable in harsh and noisy environments. Dual Bus designed to support i-8K and i-87K series I/O modules, such as DI/DO, AI/AO, Counter/Frequency modules. Ventilated housing designed to operate between !V25￠XC to +75￠XC. Using DIN rail clips or Screw poles around the corners allows the control unit to be easily mounted on the control box. Specifications CPU: 80188 or compatible (16-bit and 40MHz) SRAM: 512KBytes Flash ROM : 512KBytes EEPROM: 2KBytes Built-in Watchdog Timer 64-bit hardware unique serial numbe Real time clock NVRAM : 31Byte Ethernet port : 10BaseT NE2000 compatible COM1: RS-232 (to update firmware) COM0 : for internal communication with the 87K modules connected to the slots COM3: RS-232/485 COM4: RS-232 SMMI (small man machine interface) 5-digits LED display 4 LED indicators 4 push buttons I/O expansion slots: I-8431 : 4 slots I-8831 : 8 slots Power Power reverse polarity protection Power supply: 20W Power requirement: 10 ~ 30 V/DC Power consumption: I-8431 : 3.9 W I-8831 : 5.1 W Dimensions 230 x 110 x 75.5 mm (for 4-Slots) 354 x 110 x 75.5 mm (for 8-Slots) Operating Environment Operating Temp.: !V25￠XC to +75￠XC. Storage Temp.: !V30￠XC to +85￠XC Humidity: 5 ~ 95%,non-condensing

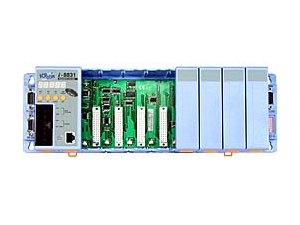

I-8831 embedded controller with gray color Introduction The I-8431/ I-8831 are Ethernet embedded controller with 4/8 I/O slots. Both are equipped with MiniOS7,an embedded OS similar to DOS that is developed by ICPDAS Co., LTD. The MiniOS7 can boot up in a very short time (0.4~0.8 second). It has built-in hardware diagnostic function, and supports the full functions to access all 8K and 87K series I/O modules, such as DI, DO, DIO, AI, AO, Counter/Frequency, motion modules etc. To simplify the TCP/IP program developing process, we designed a XServer architecture. It is a reliable, opened, expandable, all purposed,and easily to be used library. The Xserver implements 90% functionalities of Ethernet communication. Refer the rich demo programs we provided, software engineer can easily finish the 10% remaining funtionalities and greatly shorten the developing time.¡@¡@ The I-8431/I-8831 can be used in remote data acquisition and control applications, including environment monitoring, power management and factory automation. Features Equipped with MiniOS7, ,an embedded OS similar to DOS that is developed by ICP DAS Co., LTD. Support IPv4. Provides full C library functions such as 8K, 87K I/O, 7-segment LED, RTC (real time clock), EEPROM etc. Firmware can be updated via the RS-232 port. The XServer architecture greatly simplify the programming of TCP/IP protocol. Supports the VxComm technique for all ports (RS-232 and Ethernet). Provides a hardware serial number or an ASICKey to protect designated systems. Compact I/O Expansion slot allows the quick installation of I/O modules. The built-in watchdog circuit will reset the CPU module if a failure occurs in either the hardware or software, allowing the controller system more reliable and stable in harsh and noisy environments. Dual Bus designed to support i-8K and i-87K series I/O modules, such as DI/DO, AI/AO, Counter/Frequency modules. Ventilated housing designed to operate between !V25￠XC to +75￠XC. Using DIN rail clips or Screw poles around the corners allows the control unit to be easily mounted on the control box. Specifications CPU: 80188 or compatible (16-bit and 40MHz) SRAM: 512KBytes Flash ROM : 512KBytes EEPROM: 2KBytes Built-in Watchdog Timer 64-bit hardware unique serial numbe Real time clock NVRAM : 31Byte Ethernet port : 10BaseT NE2000 compatible COM1: RS-232 (to update firmware) COM0 : for internal communication with the 87K modules connected to the slots COM3: RS-232/485 COM4: RS-232 SMMI (small man machine interface) 5-digits LED display 4 LED indicators 4 push buttons I/O expansion slots: I-8431 : 4 slots I-8831 : 8 slots Power Power reverse polarity protection Power supply: 20W Power requirement: 10 ~ 30 V/DC Power consumption: I-8431 : 3.9 W I-8831 : 5.1 W Dimensions 230 x 110 x 75.5 mm (for 4-Slots) 354 x 110 x 75.5 mm (for 8-Slots) Operating Environment Operating Temp.: !V25￠XC to +75￠XC. Storage Temp.: !V30￠XC to +85￠XC Humidity: 5 ~ 95%,non-condensing

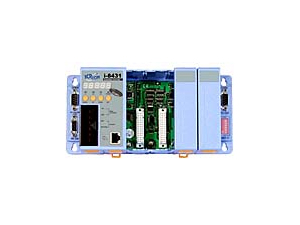

I-8431-80 embedded controller Introduction The I-8431/ I-8831 are Ethernet embedded controller with 4/8 I/O slots. Both are equipped with MiniOS7,an embedded OS similar to DOS that is developed by ICPDAS Co., LTD. The MiniOS7 can boot up in a very short time (0.4~0.8 second). It has built-in hardware diagnostic function, and supports the full functions to access all 8K and 87K series I/O modules, such as DI, DO, DIO, AI, AO, Counter/Frequency, motion modules etc. To simplify the TCP/IP program developing process, we designed a XServer architecture. It is a reliable, opened, expandable, all purposed,and easily to be used library. The Xserver implements 90% functionalities of Ethernet communication. Refer the rich demo programs we provided, software engineer can easily finish the 10% remaining funtionalities and greatly shorten the developing time.!@!@ The I-8431/I-8831 can be used in remote data acquisition and control applications, including environment monitoring, power management and factory automation. Features Equipped with MiniOS7, ,an embedded OS similar to DOS that is developed by ICP DAS Co., LTD. Support IPv4. Provides full C library functions such as 8K, 87K I/O, 7-segment LED, RTC (real time clock), EEPROM etc. Firmware can be updated via the RS-232 port. The XServer architecture greatly simplify the programming of TCP/IP protocol. Supports the VxComm technique for all ports (RS-232 and Ethernet). Provides a hardware serial number or an ASICKey to protect designated systems. Compact I/O Expansion slot allows the quick installation of I/O modules. The built-in watchdog circuit will reset the CPU module if a failure occurs in either the hardware or software, allowing the controller system more reliable and stable in harsh and noisy environments. Dual Bus designed to support i-8K and i-87K series I/O modules, such as DI/DO, AI/AO, Counter/Frequency modules. Ventilated housing designed to operate between !V25￠XC to +75￠XC. Using DIN rail clips or Screw poles around the corners allows the control unit to be easily mounted on the control box. Specifications CPU: 80186 or compatible (16-bit and 80MHz) SRAM: 512KBytes Flash ROM : 512KBytes EEPROM: 2KBytes Built-in Watchdog Timer 64-bit hardware unique serial numbe Real time clock NVRAM : 31Byte Ethernet port : 10BaseT NE2000 compatible COM1: RS-232 (to update firmware) COM0 : for internal communication with the 87K modules connected to the slots COM3: RS-232/485 COM4: RS-232 SMMI (small man machine interface) 5-digits LED display 4 LED indicators 4 push buttons I/O expansion slots: I-8431 : 4 slots I-8831 : 8 slots Power Power reverse polarity protection Power supply: 20W Power requirement: 10 ~ 30 V/DC Power consumption: I-8431 : 3.9 W I-8831 : 5.1 W Dimensions 230 x 110 x 75.5 mm (for 4-Slots) 354 x 110 x 75.5 mm (for 8-Slots)

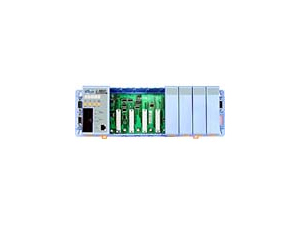

I-8831-80 embedded controller Introduction The I-8431/ I-8831 are Ethernet embedded controller with 4/8 I/O slots. Both are equipped with MiniOS7,an embedded OS similar to DOS that is developed by ICPDAS Co., LTD. The MiniOS7 can boot up in a very short time (0.4~0.8 second). It has built-in hardware diagnostic function, and supports the full functions to access all 8K and 87K series I/O modules, such as DI, DO, DIO, AI, AO, Counter/Frequency, motion modules etc. To simplify the TCP/IP program developing process, we designed a XServer architecture. It is a reliable, opened, expandable, all purposed,and easily to be used library. The Xserver implements 90% functionalities of Ethernet communication. Refer the rich demo programs we provided, software engineer can easily finish the 10% remaining funtionalities and greatly shorten the developing time.!@!@ The I-8431/I-8831 can be used in remote data acquisition and control applications, including environment monitoring, power management and factory automation. Features Equipped with MiniOS7, ,an embedded OS similar to DOS that is developed by ICP DAS Co., LTD. Support IPv4. Provides full C library functions such as 8K, 87K I/O, 7-segment LED, RTC (real time clock), EEPROM etc. Firmware can be updated via the RS-232 port. The XServer architecture greatly simplify the programming of TCP/IP protocol. Supports the VxComm technique for all ports (RS-232 and Ethernet). Provides a hardware serial number or an ASICKey to protect designated systems. Compact I/O Expansion slot allows the quick installation of I/O modules. The built-in watchdog circuit will reset the CPU module if a failure occurs in either the hardware or software, allowing the controller system more reliable and stable in harsh and noisy environments. Dual Bus designed to support i-8K and i-87K series I/O modules, such as DI/DO, AI/AO, Counter/Frequency modules. Ventilated housing designed to operate between !V25￠XC to +75￠XC. Using DIN rail clips or Screw poles around the corners allows the control unit to be easily mounted on the control box. Specifications CPU: 80186 or compatible (16-bit and 80MHz) SRAM: 512KBytes Flash ROM : 512KBytes EEPROM: 2KBytes Built-in Watchdog Timer 64-bit hardware unique serial numbe Real time clock NVRAM : 31Byte Ethernet port : 10BaseT NE2000 compatible COM1: RS-232 (to update firmware) COM0 : for internal communication with the 87K modules connected to the slots COM3: RS-232/485 COM4: RS-232 SMMI (small man machine interface) 5-digits LED display 4 LED indicators 4 push buttons I/O expansion slots: I-8431 : 4 slots I-8831 : 8 slots Power Power reverse polarity protection Power supply: 20W Power requirement: 10 ~ 30 V/DC Power consumption: I-8431 : 3.9 W I-8831 : 5.1 W Dimensions 230 x 110 x 75.5 mm (for 4-Slots) 354 x 110 x 75.5 mm (for 8-Slots)

I-8831-80 embedded controller with gray color Introduction The I-8431/ I-8831 are Ethernet embedded controller with 4/8 I/O slots. Both are equipped with MiniOS7,an embedded OS similar to DOS that is developed by ICPDAS Co., LTD. The MiniOS7 can boot up in a very short time (0.4~0.8 second). It has built-in hardware diagnostic function, and supports the full functions to access all 8K and 87K series I/O modules, such as DI, DO, DIO, AI, AO, Counter/Frequency, motion modules etc. To simplify the TCP/IP program developing process, we designed a XServer architecture. It is a reliable, opened, expandable, all purposed,and easily to be used library. The Xserver implements 90% functionalities of Ethernet communication. Refer the rich demo programs we provided, software engineer can easily finish the 10% remaining funtionalities and greatly shorten the developing time.!@!@ The I-8431/I-8831 can be used in remote data acquisition and control applications, including environment monitoring, power management and factory automation. Features Equipped with MiniOS7, ,an embedded OS similar to DOS that is developed by ICP DAS Co., LTD. Support IPv4. Provides full C library functions such as 8K, 87K I/O, 7-segment LED, RTC (real time clock), EEPROM etc. Firmware can be updated via the RS-232 port. The XServer architecture greatly simplify the programming of TCP/IP protocol. Supports the VxComm technique for all ports (RS-232 and Ethernet). Provides a hardware serial number or an ASICKey to protect designated systems. Compact I/O Expansion slot allows the quick installation of I/O modules. The built-in watchdog circuit will reset the CPU module if a failure occurs in either the hardware or software, allowing the controller system more reliable and stable in harsh and noisy environments. Dual Bus designed to support i-8K and i-87K series I/O modules, such as DI/DO, AI/AO, Counter/Frequency modules. Ventilated housing designed to operate between !V25￠XC to +75￠XC. Using DIN rail clips or Screw poles around the corners allows the control unit to be easily mounted on the control box. Specifications CPU: 80186 or compatible (16-bit and 80MHz) SRAM: 512KBytes Flash ROM : 512KBytes EEPROM: 2KBytes Built-in Watchdog Timer 64-bit hardware unique serial numbe Real time clock NVRAM : 31Byte Ethernet port : 10BaseT NE2000 compatible COM1: RS-232 (to update firmware) COM0 : for internal communication with the 87K modules connected to the slots COM3: RS-232/485 COM4: RS-232 SMMI (small man machine interface) 5-digits LED display 4 LED indicators 4 push buttons I/O expansion slots: I-8431 : 4 slots I-8831 : 8 slots Power Power reverse polarity protection Power supply: 20W Power requirement: 10 ~ 30 V/DC Power consumption: I-8431 : 3.9 W I-8831 : 5.1 W Dimensions 230 x 110 x 75.5 mm (for 4-Slots) 354 x 110 x 75.5 mm (for 8-Slots)

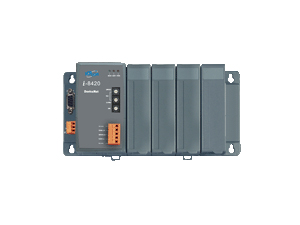

DeviceNet Embedded Device with 4 empty slots DeviceNet is one kind of the network protocols based on the CAN bus and mainly used for embedded network for machine control, such as textile machinery, printing machines, injection molding machinery, or packaging machines, etc. DeviceNet is a low level network that provides connections between simple industrial devices (sensors, actuators) and higher level devices (controllers). It allows direct peer to peer data exchange between nodes in an organized and, if necessary, deterministic manner. DeviceNet defines a connection-based scheme to facilitate all application communications. A DeviceNet connection provides a communication path between multiple endpoints. The endpoints of a connection are applications that need to share data. Features DeviceNet Version DeviceNet Specification Volume I & II, Release 2.0 Number of Nodes 64(Max) Baud Rate 125K, 250K, 500K Support Message Groups Group 2 only Server UCMM Not Support I/O Operating Modes Poll, Bit-Strobe, Change of State/ Cyclic Device Heartbeat Message ￡? Device Shutdown Message ￡? Produce EDS file Dynamically ￡? No. of Fragment I/O 128 Bytes (Max) (Input/ Output) MAC ID Setting Rotary Switch Baud Rate Setting Rotary Switch DeviceNet Status LED NET, MOD, PWR Specifications Model I-8420 I-8820 CPU 80186, 80MHz Flash 512K bytes SRAM 512K bytes EERROM 2K bytes (Can upto 128K bytes or change to 2K/8K FRAM) NVRAM 32 bytes Real Time Clock 16 bit Watch Dog Timer CPU Built-in COM1 RS232 (Program download port) CAN Port 5-pin screw terminal connector CAN Controller Phillip SJA1000T CAN Transceiver Phillip 82C250/251 CAN 2.0A/2.0B Supported ￡? Isolated 2500Vrms on CAN side Terminal Resister 120 ohm terminal resister selected by jumper Transfer Rate up to 1Mbps I/O Expasion Slot 4 slots 8 slots Power Supply 20W unregulated +10VDC to +30Vdc Operating Temp -25C to 75C Storage Temp -30C to 85C Humidity 5 ~ 95% Dimensions 230x110x75.5 mm, 354x110x75.5 mm
