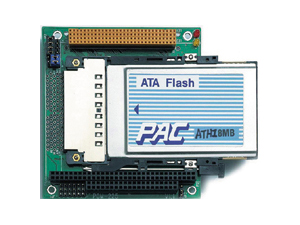

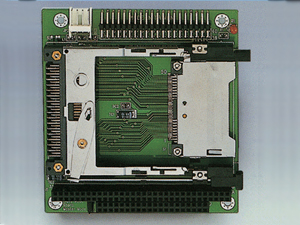

PC/104 interface ATA to IDE module PCMCIA (ATA) and CompactFlash (ATA) to standard IDE interface One slot for 68-pin ATA card another slot for 50-pin CompactFlash card 40-pin IDE and 4-pin power connectors Supports Type I/II/III ATA Flash, ATA HDD and CompactFlash Cards Standard PC/104 form factor +5V@70mA power requirement

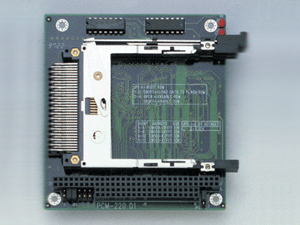

PCMCIA card drive with two PCMCIA slots Comply with PCMCIA V2.1, JEIDA 4.1 specification PCMCIA socket supports Type I/II/III Memory and I/O Cards VG-468 chips 16-bit data bus Supports two PCMCIA slots Programmable 32KB SMD-type boot EEPROM BIOS Bootable from SRAM card, Linear Flash card, ATA Flash card or ATA HDD

PC/104 interface PCMCIA drives Complied with PCMCIA V.2.10 and JEIDA 4.2 Specification One slot for PC-104 plus 16-bit legacy mode supported PCI way legacy DMA supported Supports 5V/ 3.3V, 16/ 32-bit Cards T/I 1420 PCMCIA controller Hot-Swap supported

PC/104 interface PCMCIA drives Complied with PCMCIA V.2.10 and JEIDA 4.2 Specification One slot for PC-104 plus 16-bit legacy mode supported PCI way legacy DMA supported Supports 5V/ 3.3V, 16/ 32-bit Cards T/I 1420 PCMCIA controller Hot-Swap supported

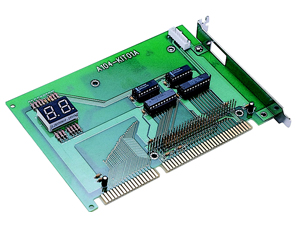

ISA AND PC/104 diagnostic card Bus : ISA and PC/104 7-Segments LED display for port 80H BIOS error code Troubleshooting for POST (Power On Self Test) when system boot-up 8-pin external power connector for PC/104 system testing

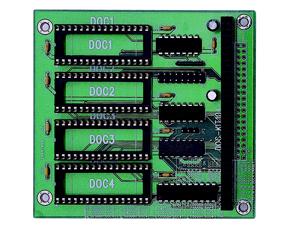

PC/104 DiskOnChip Carry Board Bus:PC/104 Four DiskOnChip sockets ON board Sofware utility to combine multi-DOC chip as one driver under DOS environment

PC/104 Power Supply AC/DC Module Power: Input voltage range: 90 - 264 VAC Output voltage: +5VDC @ 2A, -5VDC @0.2 A, +12VDC @1 A, -12 VDC @ 0.3 A Input frequency: 47 - 63 Hz Inrush current cold: 20 A @ 110 VAC, 40A @ 220 VAC Hold-up time: 16 ms Raise time: 500 ms Overload protection: power limit Short protection: auto- Recovery MOSFET design Built-in line filter Meets FCC, CE, TUV Meets UL478 and CS Fast type FUSE 2A/250V Bus Interface PC/104 Standard Compliant Connector 3-pin AC input 6-pin DC output Dimensions 90(L)x96(W)mm (3.54" x 3.78") Weight 120g Operating Temperature 0°C ~+60°C

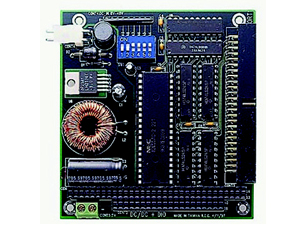

PC/104 Power Supply DC/DC with DIO Module Digital I/O24 bit digital I/O lines (1 group)Group emulates a 8225 PPI mode 0Buffered circuits for higher driving capacity than 8255Output status read backPin-compatible with OPTO-22 I/O module racksTransfer rate: 300 KB/sec. (Typical)Digital output: Logic level 0:0.5 Vmax. @ 24mA sinkLogic level 1:2.0 Vmin @15 mA sourceDigital input: Logic level 0: 0.8 V max.Logic level 1: 2.0 V min.PowerInput range: 8 - 48VDCOutput: 5VDC @ 3A MaxSwitch frequency: 52 KHzEfficiency: 80%Overload Protection: Shutdown when reaching thermal or current limitConnector 50-pin box header for I/O portDimensions 90 (L) x 96 (W) mm (3.54" x 3.78")Weight 110gOperating Temperature -20￠XC~+60￠XC
