FEATURES: RS-232 to RS-485 Converter SPECIFICATIONS: Input : RS-232 protocol Output : RS-485 protocol (two wire, D+, D-) Speed : auto switching baud rate, 300~115200 bps Internal "Self Tuner" Maximum of 256 modules. in a single RS-485 network without using a repeater Maximum of 2048 modules. in a single RS-485 network when using a repeater Isolation voltage: 3000Vdc on the RS-232 side Repeater request: 4,000 feet or over 256 modules

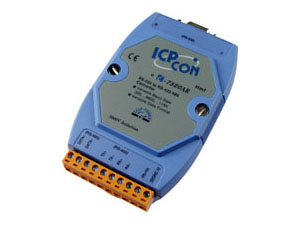

FEATURES: RS-232 to RS-422/RS-485 converter SPECIFICATIONS: Output: RS-485/RS-422 protocol Speed: "Self Tuner" inside, auto switching baud rate, 300~115200 BPS 256 modules max. in one RS-485 network without repeater 2048 modules max. in one RS-485 network with repeater Isolation voltage: 3000VDC Repeater request: 4,000 feet or over 256 modules Input power : 12VDC ~ 24VDC Power consumption: 2.2W max. ROHS compliant product Din Rail Mount

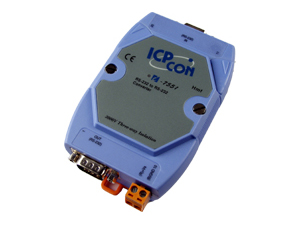

FEATURES: The I-7551 Photo coupler provides a complete full-duplex (including control signal) electrical isolation channel between two RS-232 devices. This isolation is an important consideration if a system uses different power sources, has noisy signals or must operate at different ground potentials. The I-7551 has the option of reconfiguring which control signal is used. CTS can be selected instead of DSR and RTS instead of DTR. The I-7551 incorporates two DC-to-DC converters, the isolation site of I-7551 is located in the input and output interface circuit. In other words, I-7551 is three- way isolation RS-232 to RS-232 converter. SPECIFICATIONS: Input : RS-232 ( TxD, RxD, CTS, RTS, GND or TxD, RxD, DSR, DTR, GND ) Output: RS-232 ( TxD, RxD, CTS, RTS, GND or TxD, RxD, DSR, DTR, GND ) Jumpers JP1 and JP2 select the RS-232 input source type Communication speed: 115.2K bps (maximum) Distance Max: 15 Meters Three-way Isolation voltage: 3000 Vdc 2500V rms Channel to Channel isolation Power consumption: 2.2W (maximum)

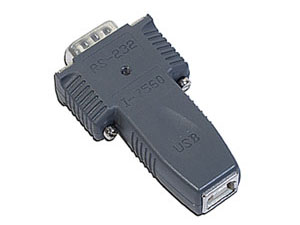

FEATURES: The I-7560 adds a Windows serial Com port via it's USB connection and is compatible with new & legacy RS-232 devices. USB Plug and Play allows easy serial port expansion and requires no IRQ, DMA, or I/O port resources. I-7560 features a full set of RS-232 modem data and control signals ( TxD, RxD, RTS, CTS, DSR, DTR, DCD, RI and GND ) on it's PC compatible DB9 male connector. It also features a high-speed 115.2 Kb/s transmission rate. No external power supply is required as I-7560 takes it's power from the USB bus. I-7560 comes complete with drivers for Microsoft Windows '98, Windows ME, Windows 2000 and Windows XP and Linux. SPECIFICATIONS: Compatibility: USB 1.1 and 2.0 standard Input port : USB Output port: 9-wire RS-232 Cable: USB type A connector (Type A to Type B cable provided). RS-232 Signals: TxD, RxD, RTS, CTS,DSR,DTR, DCD, RI and GND Operating temperature: -25°C to +75°C Storage temperature: -40°C to +85°C Humidity: 5% ~ 95% Drivers supported : Windows 98/ME/2000 /XP/Linux

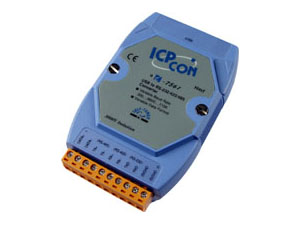

FEATURES: The I-7561 is a cost-effective module for transfer serial data over USB. It allows you to connect your serial devices to systems using a USB interface. Connecting the I-7561 to a PC, you get one RS-232/422/485 port. Like our I-7520A,the I-7561 contains “ Self Tuner “ This chip auto-tunes the baud rate and data format to the Rs-485 network.The I-7561 module derives the power from the USB port and doesn’t need any power adapter. It also features a high-speed 115.2 Kb/s transmission rate, and supports various O.S. independent RS-232/422/485 Ports. Full speed with USB 1.1 specifications. Input: USB protocol. Output: RS-232/422/485 protocol. Speed: “Self Tuner” inside 3000 Vdc isolation protection provided. 256 modules max. in one RS-485 network without repeater. 2048 modules max. in one RS-485 network with repeater. Repeater request: 4,000 feet or over 256 modules. Plug-and-Play installation. The I-7561 gets the power from USB port; no need for external power supply Windows 98/ME/2000/XP and Linux drivers supported. Drivers for other operating systems are currently under development SPECIFICATIONS: Compatibility: USB 1.1 and 2.0 standard Input: USB protocol Output: RS-232/422/485 protocol Cable: USB type A connector (Type A to Type B cable provided) RS-232 Signals: TXD, RXD, GND RS-422 Signals: RX+, RX-, TX+, TX- RS-485 Signals: DATA+, DATA- “Self Tuner” inside, supports multiple Baud Rate and multiple Data Formats 256 modules max. in one RS-422/485 network without repeater Isolation voltage: 3000 Vdc Photo-coupler isolation: 2500V rms Repeater request: 4,000 feet or over 256 modules Communication distance: 1.2Km/9600 bps Mounting: Din-rail, wall mounting, piggyback stack Operating temperature: -25°C to +75°C Storage temperature: -25°C to +80°C Humidity: 5 ~ 95% Dimensions: 123 mm x 72 mm x 33 mm Drivers supported: Windows 98/ME/2000/XP and Linux Din Rail Mount

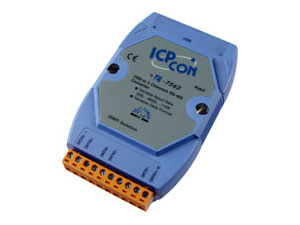

FEATURES: The I-7563 is a cost-effective module for transfer serial data over USB. It allows you to connect your serial devices to systems using a USB interface. Connectibg the I-7563 to a PC, The I-7563 contains "Self Tuner" This chip auto-tunes the baud rate and data format to the Rs-485 natwork. The I-7563 module derives the power from the USB port and doesn't need any power adapter. It also features a high-speed 115.2 Kb/s transmission rate, and supports various O.S. Do you have any RS-485 wiring problems? The I-7563 is USB to three ports RS-485 Hub. Each channel has its own RS-485 driver IC on it, so it can support star-shaped wiring. SPECIFICATIONS: Compatibility: USB 1.1 and 2.0 standard Full speed with USB 1.1specifications Input Port: USB Output Port: Three way RS-485 Speed: "Self Tuner" inside 3000 Vdc isolation protection provided Photo-coupler isolation: 2500V rms 256 modules max.(All channels) RS-485 network without repeater. 2048 modules max. (All channels) RS-485 network with repeater Repeater request: 4,000 feet or over 256 modules Plug-and-Play installation The I-7563 gets the power from USB port; no need external power supply Windows 98/ME/2000/XP and Linux drivers supported. Drivers for other operating systems are currently under development Din Rail Mount

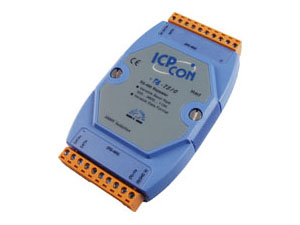

FEATURES: RS-485 isolated high speed repeater SPECIFICATIONS: Input: RS-485 protocol (two wire) Output: RS-485 protocol (two wire) Speed: “Self Tuner” inside, auto switching baud rate, 300~115200 bps Isolation voltage: 3000Vdc Power consumption: 2.2W max

FEATURES: RS-485 / RS-485 isolated high speed repeater SPECIFICATIONS: Input: RS-485/RS-422 protocol Output: RS-485/RS-422 protocol Speed: “Self Tuner” inside, auto switching baud rate, 300~115200 bps Isolation voltage: 3000Vdc Power consumption: 2.2W max
