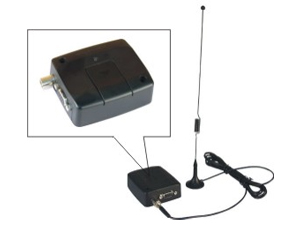

900/1800 GSM/GPRS External Modem Introduction The Sony Ericsson GM29 is a dual band (GSM 900/1800MHz) GSM/GPRS serial modem that offers integrators an instant and cost-effective M2M solution for getting applications to market fast. The GM29 is a plug-and-play modem with an integral SIM card reader and standard connector interfaces. By plugging the RS232 connector directly into an application or computer the GM29 becomes ready to use as a wireless modem. The modem can send and receive data by GPRS, HSCSD, CSD, SMS, and fax as well as handle voice calls. The GM29 is a powerful and flexible solution that can be used in virtually any imaginable application and is ideal for vending, monitoring and control, security/alarms and fleet management. The same levels of excellence that have been trademarks of Sony and Ericsson worldwide go into every radio device design. Sony Ericsson applies the same R&D and manufacturing expertise in these products as it does in its world-class mobile telephones. M2M Com Product Unit of Sony Ericsson Mobile Communications is ISO-9001 Certified. Product Features Dual band EGSM 900/1800 MHz serial modem GPRS Class B (4+1) Compliant with ETSI GSM Phase 2+ standards(Small MS) Output power Class 4 (2W @ 900 MHz) Class 1 (1W @ 1800 MHz) Supply voltage 5-32 Vdc Standard RS232 9-way serial connection Overall dimensions (excluding connectors): 77 x 67 x 26mm Operating temperature range: -25o C to +55o C Storage temperature range: -40o C to +85o C Weight: < 130g Interfaces Data: RS232 9-way (V.28) Remote control by AT commands Serial baud rate from 1200 to 460,800 bits/s Power: 5-32 Vdc RJ11 connector Audio: 4-wire handset interface RJ9 connector Antenna: 50? FME male connector SIM card reader: 3V/5V SIM interface with SIM detection Data Features CSD up to 9.6 kbps HSCSD (2+1), up to 19.2 kbps GPRS Class B (4+1), up to 85.6 kbps* P Channel support Coding schemes CS1-CS4 GSM 07.10 Multiplexing Protocol Short Messages Services(SMS) Features Text and PDU Point to point (MT/MO) Cell Broadcast Concatenation !V up to 6 SMS FAX Features Fax Group 3, Class 1 & 2 Voice Features Telephony Emergency calls Full Rate, Enhanced Full Rate and Half Rate(FR/EFR/HR) Dual Tone Multi Frequency function (DTMF) GSM Supplementary Services Call forwarding Call hold, waiting and multiparty Calling/called number identification Advice of charge USSD Alternate line service Customer service profile Preferred networks Operator selection Network registration Call barring Call transfer Other Features ME + SIM phone book management !V read/write/find, call screening, groups, personal rings, settings SIM Application Toolkit Class 2 Real Time Clock Software upgradeable Options for embedding customer applications Audio control Fixed dialling number UCS2 16-bit data supported Commercially available accessories Note: The GM-29 only support English SMS

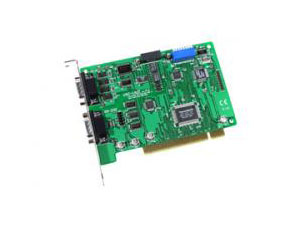

Isolated RS-422/RS485 & Non-isolated RS-232 Multi-Serial Card FEATURES: Isolated RS-422/RS485 & Non-isolated RS-232 Multi-Serial Card SPECIFICATIONS: PCI Bus Com3 : RS-422/RS-485 Support RS-422/RS485, 921.6K communication speed , 3000V Isolation, self-tuner inside COM4 : RS-232, 921.6K communication speed,non-isolation Plug & Play driver, supports COM3 & COM4

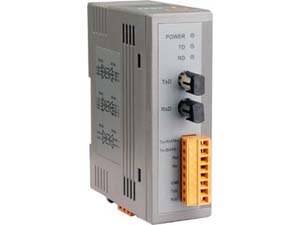

Serial to Fiber Converter FEATURES: The I-2541 is an RS-232/422/485 to fiber optic converter that secures data transmission by using fiber optic transmission to provide immunity from EMI/RFI interference. The I-2541 is used for RS-232/422 point-to-point connections and RS-485 multi-drop applications for transmitting a signal up to 2 Km (6,600 ft). It's the perfect solution for applications where transmission must be protected from electrical exposure, surges, lightning or chemical corrosion. SPECIFICATIONS: Fiber Port: ST (Multi-mode) Wave Length: 850 nm Fiber Cable: 62.5/125 µm Speed: "Self Tuner" Auto Switching Baud Rate 300 ~ 115200 bps Extend transmission distance up to 2 Km. Isolation voltage: 3000Vdc Optical isolation: 3570Vrms Dimensions: 32.30mm x 99mm x 77.50mm (w x h x d) Power requirements: Unregulated +10Vdc ~ +30Vdc. Power consumption: 2.0W max Environment: Operating temperature: 0° ~ +70°C Storage Temperature: -20°C ~ +85°C Relative Humidity: 10% to 90% non-condensing

CANopen/DCON converter FEATURES: DCON protocol is a kind of application protocol based on the RS-485 network. It is special for ICPDAS DCON I/O modules, such as I-7000 series and I-87K series modules. By way of using I-7231D to convert the electric signals and messages, the DCON I/O modules can be upgraded to the CANopen protocol based on the CAN bus. For CANopen protocol application, the I-7231D is a CANopen slave device. So, it can produce or consume the PDO messages, receive the SDO message with proper responses, and deal with the NMT messages from NMT master. For DCON protocol application, it is a DCON master device, and it will collect all of the I/O situations of the I-7000 and I-87K series modules connected with the RS-485 port of I-7231D. Therefore, If the I-7231D receive the command form CAN bus, it does the corresponding reactions for DCON I/O channels. In addition, we also provide the utility tool for users to configure the device parameters and build EDS file for the CANopen slave device. Therefore, users can easily apply I-7k and I-87K IO modules in any CANopen master interface with EDS file via the I-7231D NMT: Slave Error Control: Heart beat or Node Guarding selectable Node ID: Hardware rotary switch No. of PDOs: 16 Rx, 16Tx PDO Modes: Event-triggered, remotely requested, cyclic and acyclic SYNC PDO Mapping: variable No of SDOs: 1 server, 0 client Emergency Message: Yes CANopen Version: DS-301 v4.01 Device Profile: DSP-401 v2.0 Produce EDS file dynamically Baud Rate setting by rotary switch: 10K, 20K, 50K, 125K, 250K, 500K, 800K and 1M bps CAN, ERR and Tx/Rx LED indicators Support max 15 I-7000/I-87K I/O series modules Provide friendly Utility to configure 7-segmemt LED to show operation mode, Node ID, CAN baud and RS-485 baud Applications Industrial Machinery Building Automation Maritime Restaurant Appliances Distributed data acquisition

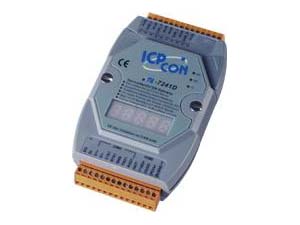

CANopen/DeviceNET converter FEATURES: The I-7241D is a CAN bus product. The device offers the communication gateway between DeviceNet and DCON protocol. DCON protocol is the communication protocol of I-7K and I-87K series IO modules of ICP DAS. The I-7241D can be a DeviceNet slave device in CAN bus for the DeviceNet network. It is a Group 2 Only Slave device, and supports “Predefined Master/slave Connection Set”. We also provide the utility software for users to configure the device parameters and build the EDS file for the DeviceNet slave device. Users can easily apply I-7K and I-87K I/O modules in DeviceNet applications with the I-7241D. Applications: Control Systems Building Automation Factory Automation Distributed Data Acquisition Features NMT: Slave Supports Predefined Master/slave Connection Set Dynamic Assembly Objects Mapping Supports Offline Connection Set, Device Heartbeat message and Device Shutdown message Provides Assembly object Dynamicly Product EDS File I/O operating modes: Polling, Bit-Strobe, Change of State/Cyclic Support max 15 I-7K/I-87K IO modules Provides friendly Utility forconfiguration Baud Rate: 125Kb, 250Kb, 500Kb On-line change baud rate and MAC ID of CAN 7-segmemt LED to show operation mode, MAC ID, baud rate and error code SPECIFICATIONS: I-7241D Utility Support auto-scan I-7K/I-87K modules Auto-scan I-7k/I-87K modules connected with I-7241D COM Port Show I-7k/I-87K modules configuration Show Application and Assembly Objects configuration Support IO connection path setting Support EDS file creating

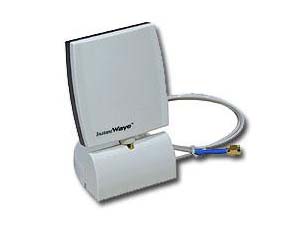

6dBi Indoor High Gain Direction Antenna FEATURES: The InstantWave 6dBi Indoor High-Gain Directional Antenna provides greater wireless range with cost-savings, and simplicity over installing extra wireless access points into the network. The antenna connects directly to a wireless client adapter, wireless access point, or bridge equipment, and amplifies the wireless signal by up to 100%. The InstantWave NWA0106 focuses the amplified signal in a specific direction to optimize the range and transmission characteristics in an indoor radio frequency hostile environment. The InstantWave NWA0106 6dBi Indoor High-Gain Directional Antenna redirects the power energy it receives from the transmitter, and provides more energy in one direction, less energy in all other directions in order to give wireless transmissions a greater range. For better signal transmission/reception, the InstantWave NWA0106 6dBi Indoor High-Gain Directional Antenna comes with a convenience pack for easy installation. Enables you to mount the antenna on the wall or ceiling Easy to assemble, easy to disassemble

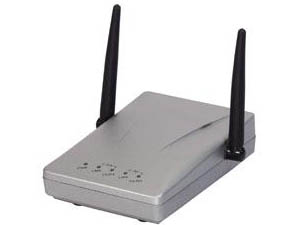

11 Mbps Wireless Networking Access Point FEATURES: The InstantWave 11Mbps Wireless Access Point is a cost-effective, easy-to-deploy wireless network solution for telecommuters or small offices and branch offices. A comprehensive SNMP-based management tool provides professional level local and remote management and monitoring. Featuring a well-designed dual antenna for robust operation in radio frequency hostile environments, and complying with the IEEE 802.11b and Wi-Fi standards, the InstantWave 11Mbps Wireless Access Point is a high performance, easily managed wireless-wired network product. The InstantWave 11Mbps Wireless Access Point is a cost-effective, easy-to-deploy wireless network solution for telecommuters or small offices and branch offices. A comprehensive SNMP-based management tool provides professional level local and remote management and monitoring. Featuring a well-designed dual antenna for robust operation in radio frequency hostile environments, and complying with the IEEE 802.11b and Wi-Fi standards, the InstantWave 11Mbps Wireless Access Point is a high performance, easily managed wireless-wired network product. Industrial IEEE 802.11b Standard Compliant Complies with the IEEE 802.11b DSSS (Direct Sequence Spread Spectrum) wireless standard and is fully compatible with other Wi-Fi certified products, ensuring full product interoperability between vendors. Superior Coverage and High Transmission Quality With InstantWave's superior receive sensitivity and transmission power, the 11Mbps Wireless Access Point gives outstanding transmission quality over a range from 30%~50% more than similar products under the same environment conditions. Easy Installation User-friendly Windows-based interface, setup wizard, and step-by-step instructions make the InstantWave 11Mbps Wireless Access Point fast and easy to install. Comprehensive Network Management Tools Supports SNMP for MIB I and MIB II over Ethernet in a Windows environment. Two Configuration Interfaces Remote: Windows-based AP configuration using APMS (Access Point Management System) Local: Allows a PC to configure the Access Point via a COM port (RS-232) Protocol Filtering: Prevents the AP from transmitting specified protocols from the wired Ethernet LAN into the wireless zone. Remote Firmware Upgrade: Updated AP firmware can be installed via the APMS program from a remote station. Security WEP (Wired Equivalent Privacy): 40 & 128-bit WEP encryption for secure wireless LAN data transmissions. Domain Access Control (SSID): A security system that prevents unauthorized access to the wireless network. MAC Access Control: Restricts wireless access to authorized MAC addresses only. Administrative Access Control: Assigns AP administrators a password and management rights. Easy and fast network Combined with IEEE 802.11b Wi-Fi compliant wireless adapters, the InstantWave 11Mbps Access Point provides a total wireless networking/network expansion solution.

Outdoor AP and Router
