Caractéristiques détaillées:
DT9844-32-OEM:USB Data acquisition module; 20-bit, 1 MHz, 32 AI, 32 DIO, 5 C/T, No Enclosure
DT9844 is available in two configurations: STP connection box or OEM Embedded version. Combine with the free QuickDAQ software for an isolated, easy-to-use measurement solution at the highest throughput and accuracy.
The DT9844 is a high-accuracy (20-bit resolution),high-speed (1 MS/s sample rate) USB data acquisition module, offering unparallelled performance. The specially-designed circuitry on thismodule reduces crosstalk between channels, and when compined with the free QuickDAQ software, provides a high-performance measurement solution for even the most sophisticated applications. This module provides 32 single-ended (SE) or 16 differential (DIFF) analog input channels Digital input and cuonter/timer data can be synchronously acquired with the analog input data.

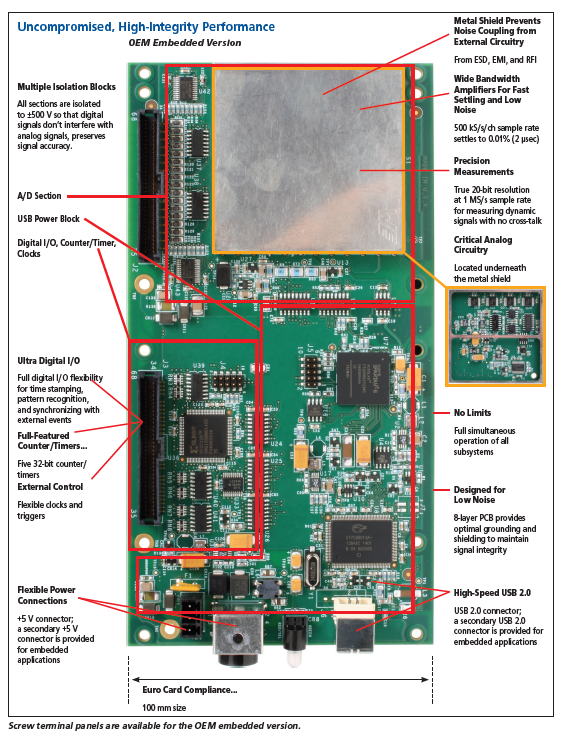

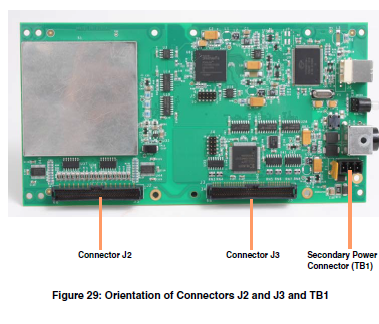

The DT9844 module provides a secondary power connector, which is useful for Embedded applications. For applications where you want to embed a DT9844 module Inside other Equipment, use the OEM packaging configuration (no enclosure) with following optional accessories: EP355 and EP361.
. KEY FEATURES for DT9844
*Highest accuracy/sample rate available anywhere: 20-bit @ 1MS/s, +/- 10V range, 20 uV, 1 ppm resolution
*Lowest noise/crosstalk: -80 dB at 1kHz, 500 kHz settling
*+/- 500V Tri-Sectional Galvanic Isolation: prevents digital interference with precise analog signals... preserves signal integrity
*Full simultaneous operation of all functions: 32 A/D channels, 32 DIO, 5 counter/timers
*Includes free QuickDAQ software to get up and running quickly
*View all specifications for DT9844 series click here
*View manual for DT9844 series click here
DT9844-32-OEM:USB Data acquisition module; 20-bit, 1 MHz, 32 AI, 32 DIO, 5 C/T, No Enclosure
DT9844 is available in two configurations: STP connection box or OEM Embedded version. Combine with the free QuickDAQ software for an isolated, easy-to-use measurement solution at the highest throughput and accuracy.
The DT9844 is a high-accuracy (20-bit resolution),high-speed (1 MS/s sample rate) USB data acquisition module, offering unparallelled performance. The specially-designed circuitry on thismodule reduces crosstalk between channels, and when compined with the free QuickDAQ software, provides a high-performance measurement solution for even the most sophisticated applications. This module provides 32 single-ended (SE) or 16 differential (DIFF) analog input channels Digital input and cuonter/timer data can be synchronously acquired with the analog input data.
The DT9844 module provides a secondary power connector, which is useful for Embedded applications. For applications where you want to embed a DT9844 module Inside other Equipment, use the OEM packaging configuration (no enclosure) with following optional accessories: EP355 and EP361.
. KEY FEATURES for DT9844
*Highest accuracy/sample rate available anywhere: 20-bit @ 1MS/s, +/- 10V range, 20 uV, 1 ppm resolution
*Lowest noise/crosstalk: -80 dB at 1kHz, 500 kHz settling
*+/- 500V Tri-Sectional Galvanic Isolation: prevents digital interference with precise analog signals... preserves signal integrity
*Full simultaneous operation of all functions: 32 A/D channels, 32 DIO, 5 counter/timers
*Includes free QuickDAQ software to get up and running quickly
*View all specifications for DT9844 series click here
*View manual for DT9844 series click here
Spécifications:
FOR MODEL **** DT9844-32-OEM****
# of Analog Inputs
32 SE/16 DIFF
Resolution
20-bit
Max sample rate
1 MS/s
Sampling
multiplexed
Ranges
+/- 10 mV
Digital I/O
32 channels, 5 counter/timers
