Industrial 4U 19" Rack-mount Computer BIRAM: Basic Industrial Rackmount Includes: Industrial MotherBoard: AMI-I845GV-3ISA PENT-IV 2.8GHz CPU : AMI-I845GV-3ISA

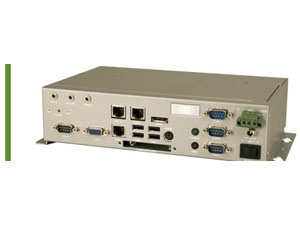

Fanless embedded system with NANO-8522G, Pentium M 1.6GHz CPU, FSB 400MHz, EPM-1056 4ch. video capturing, 9 ~ 36VDC, sliver, RoHS Features: RoHS compliant fanless design Supports Pentium M /Celeron M up to 1.8 GHz 1 x 2.5" SATA HDD. 1 x CompactFlash slot EPM series PCI-104 interface expansion modules compatible 12VDC, 9V~36VDC input models available Specifications: SBC: NANO-8522G Processor: Intel® Pentium® M / Celeron® M CPU with 400MHz FSB, up to 1.8GHz System Chipset: lntel® 852GM + ICH4 System Memory: 1 x DDR 266/200MHz SO-DIMM socket support up to 1GB Ethernet: 1 x 10/100/1000Base-T, Intel® 82541PI 3 x 10/100/1000Base-T, Intel® 82541PI 1 x 10/100/1000Base-T, Intel® 82541PI 1 x 10/100/1000Base-T, Intel® 82541PI Display: CRT interface with DB-15 connector USB: 4 x USB 2.0 Serial Port: 3 x RS-232 (COM-1, 3, 4), 1 x RS-232/422/485 selectable (COM2) Audio: Line-in, MIC-in, Line-out Line-in, MIC-in, Line-out Line-in, MIC-in, Line-out Line-in, MIC-in, Line-out Video Capturing: N/A N/A 4 ch. MPEG-4 hardware codec video and audio capturing(EPM-1059) 4 ch. video capturing(EPM-1056) Others: 1 x eSATA 4 x BNC for video capturing 1 x DB-9 for audio capturing 4 x BNC for video capturing Storage: 1 x 2.5" SATA hard drive 1 x CompactFlash socket for type I/II CompactFlash Disk Power input: 12VDC* with DC jack and 3pin terminal block. WD series input voltage: 9V~36VDC Chassis Construction: Heavy duty metal with Aluminum Alloy Fin Operating Temperature: 0°C ~ 50°C with industrial grade CompactFlash 0°C ~ 45°C with hard drive Operating Shock: MIL-STD-810F 514.5C-1 Operating Vibration: 3G acceleration peak to peak (11ms) Weight (Net/ Gross): 2kg / 3.2kg 2.2kg / 3.3kg 2.4kg / 3.5kg 2.4kg / 3.5kg Dimensions (DxWxH): 250mm x 62mm x 160mm

Fanless embedded system with NANO-8522G, Pentium M 1.6GHz CPU, FSB 400MHz, EPM-1056 4ch. video capturing, 9-36VDC in, sliver, RoHS Features: RoHS compliant fanless design Supports Pentium M / Celeron M up to 1.8 GHz 4 x USB 2.0, 4 x COM port with mic-in and line out EPM series PCI-104 interface expansion modules compatible 12VDC, 9V~36VDC input models available Specifications: SBC: NANO-8522G Processor: Socket 479 Intel® Pentium® M with 400MHz FSB, up to 1.8GHz System Chipset: lntel® 852GM + ICH4 System Memory: 1 x DDR 266/200MHz SO-DIMM socket support up to 1GB Ethernet: 1 x 10/100/1000 Base-T, Intel® 82541PI Display: CRT interface with DB-15 connector USB:4 x USB 2.0 Serial Port: 3 x RS-232 (COM-1, 3, 4) 1 x RS-232/422/485 selectable (COM2) Audio: Line-in, MIC-in, Line-out Video Capturing: 4 ch. video capturing (EPM-1056) Others: 4 x BNC for video capturing Storage: 1 x CompactFlash socket for type I/II CompactFlash Disk Power input: 12VDC* with DC jack and 3pin terminal block. WD series input voltage: 9V~36VDC Chassis Construction: Heavy duty metal Operating Temperature: 0°C ~50°C with industrial grade CompactFlash Operating Shock: 3G acceleration peak to peak (11ms) Operating Vibration: MIL-STD-810F 514.5C-1 3 axes, 10-500 Hz, 60min/axis. Z:1.04 Grms X:0.204 Grms Y:0.74 Grms Weight (Net/ Gross): 1.9kg / 3.1kg Dimensions (DxWxH): 250 x 62 x 150 (mm) EMC: Meets CE, FCC Class A

Industrial 4U 19" Rack-mount Computer BIRAM: Basic Industrial Rackmount Includes: Industrial Rack-mount 4U 19'' Chassis Industrial MotherBoard: IMB-Q870-i2 IMB-Q870-i2 Supports: PENT. LGA-1150 4th Intel® Core i7/i5/i3 Processor: Up to 16GB RAM DDR3-1333/1600 MHz

Industrial 4U 19" Rack-mount Computer BPR: Rackmount Industrial Computer with Bacbplane PX-14S5 : 7 PCI and 7 ISA Expansion Slots PX-14S5 Includes: Industrial SBC: WSB-G41A PENT. LGA-775 Core 2 Duo 2.6GHz CPU : WSB-G41A

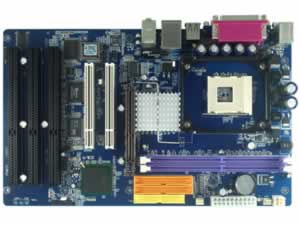

Socket 478 for Celeron® 4 /Pentiun®4 FSB 533 ATX MTB This mainboard features 3*ISA and 2*PCI Expansion Slots DDR200/DDR266 DDR memory Ethernet: Realtek RTL8100C Fast Ethernet controllers Audio: Realtek ALC655 AC'97 Codec Audio MIO: 2 x ATA-100 IDE, 1 x FDD, 1 x PS/2 K/B, 1 x PS/2 MS, 2 x COM (2 x RS-232), 1 x LPT, 1 x RJ-45

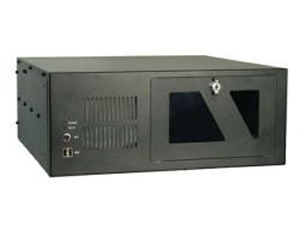

Industrial 4U 19" Rack-mount Chassis, Black or White ; Power Supply not included
