Automation Industrielle | M-7000 modules et cartes
M-7041D
14 channel Isolated Digital Input Module, Communicable via ModBus Protocol M-7041 with LED display Channels: 16 Digital input level: Dry contact: logic level 0: close to GND logic level 1: open Wet contact: logic level 0: +2V max. logic level 1: +4V to +30V Effective distance for dry contact: 500m max.
$260.00
M-7055D
8-channel Isolated Digital Input and 8-channel Isolated Digital Output Module, communicable via ModBus protocol M-7055 with LED display Channels: 16 Digital input level: Dry contact: logic level 0: close to GND logic level 1: open Wet contact: logic level 0: +2V max. logic level 1: +4V to +30V Effective distance for dry contact: 500m max.
$303.00
M-7055
8-channel Isolated Digital Input and 8-channel Isolated Digital Output Module, communicable via ModBus protocol Channels: 16 Digital input level: Dry contact: logic level 0: close to GND logic level 1: open Wet contact: logic level 0: +2V max. logic level 1: +4V to +30V Effective distance for dry contact: 500m max.
$276.00
M-7060
Relay Output & Isolated Digital Input Module with Modbus protocol Communication: Via ModBus Protocol Channels: 4 Four isolated channels with common power Digital input : Logic level 0: +1V max. Logic level 1: +3.5 to 30V Isolation voltage: 3750Vrms Input impedance: 3KO , 0.5W Relay output Channels: 4 Two form relay SPST (N.O.) Two form relay SPDT Dry contact Characteristics Contact rating: AC: 125V @0.6A; 250V @0.3A DC: 30V @2A; 110V @0.6A Breakdown voltage: 500VAC (50/60Hz) Relay on time(typical): 3ms Relay off time(typical): 1ms Total switching time: 10ms Insulation resistance: 1000MW min. at 500Vdc Power Power consumption: 0.8W
$260.00
M-7060D
Relay Output & Isolated Digital Input Module with Modbus protocol M-7060 with Display Communication: Via ModBus Protocol Channels: 4 Four isolated channels with common power Digital input : Logic level 0: +1V max. Logic level 1: +3.5 to 30V Isolation voltage: 3750Vrms Input impedance: 3KO , 0.5W Relay output Channels: 4 Two form relay SPST (N.O.) Two form relay SPDT Dry contact Characteristics Contact rating: AC: 125V @0.6A; 250V @0.3A DC: 30V @2A; 110V @0.6A Breakdown voltage: 500VAC (50/60Hz) Relay on time(typical): 3ms Relay off time(typical): 1ms Total switching time: 10ms Insulation resistance: 1000MW min. at 500Vdc Power Power consumption: 0.8W
$276.00
M-7067
Relay Output Module, communicable via ModBus Protocol Channels: 7 Form relay SPST N.O. Dry Contacts AC 120V@0.5A DC 24V@1A Surge strength: 1500VAC Relay on time(typical): 5 ms Power Power consumption: 0.8W
$289.00
M-7067D
Relay Output Module, communicable via ModBus Protocol M-7067 with LED display Channels: 7 Form relay SPST N.O. Dry Contacts AC 120V@0.5A DC 24V@1A Surge strength: 1500VAC Relay on time(typical): 5 ms Power Power consumption: 0.8W
$303.00

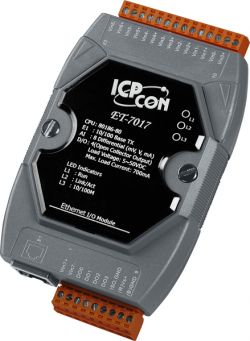

ET-7017
8-channel Analog Input Module. Communicable over Ethernet or ModBus TCP Protocol Channels : 8 Channel Voltage Inputs, Current Inputs,Analog Input with high voltage protection. Resolution : 16-bit Input type: mV, V , mA Input range: ? 150mV, ? 500mV , ? 1V, ? 5V, ? 10V and ? 20mA Sample rate: 10 sample/sec(total) Bandwidth: 13.1 Hz Accuracy: ? 0.1% or better Zero drift: ? 0.03uV/C Span drift: ? 25ppm/C CMR @ 50/60 Hz : 92 dB min Over voltage protection: 35V
$472.00
