Techmatron Instruments Inc. | Nos Produits | Automation Industrielle | Réseau local, sans fil, GSM/GPRS

Automation Industrielle | Réseau local, sans fil, GSM/GPRS | I-7241D

I-7241D

Prix: 811 $

Ajouter à mes intérêts

Imprimer

Caractéristiques détaillées:

CANopen/DeviceNET converter

FEATURES:

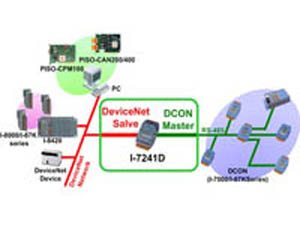

The I-7241D is a CAN bus product. The device offers the communication gateway between DeviceNet and DCON protocol. DCON protocol is the communication protocol of I-7K and I-87K series IO modules of ICP DAS. The I-7241D can be a DeviceNet slave device in CAN bus for the DeviceNet network. It is a Group 2 Only Slave device, and supports “Predefined Master/slave Connection Set”. We also provide the utility software for users to configure the device parameters and build the EDS file for the DeviceNet slave device. Users can easily apply I-7K and I-87K I/O modules in DeviceNet applications with the I-7241D.

Applications:

Control Systems

Building Automation

Factory Automation

Distributed Data Acquisition

Features

NMT: Slave

Supports Predefined Master/slave Connection Set

Dynamic Assembly Objects Mapping

Supports Offline Connection Set, Device Heartbeat message and Device Shutdown message

Provides Assembly object

Dynamicly Product EDS File

I/O operating modes: Polling, Bit-Strobe, Change of State/Cyclic

Support max 15 I-7K/I-87K IO modules

Provides friendly Utility forconfiguration

Baud Rate: 125Kb, 250Kb, 500Kb

On-line change baud rate and MAC ID of CAN

7-segmemt LED to show operation mode, MAC ID, baud rate and error code

SPECIFICATIONS:

I-7241D Utility

Support auto-scan I-7K/I-87K modules

Auto-scan I-7k/I-87K modules connected with I-7241D COM Port

Show I-7k/I-87K modules configuration

Show Application and Assembly Objects configuration

Support IO connection path setting

Support EDS file creating

Voir moins

Spécifications:

CPU

80188, 40MHz

Flash

512K bytes

SRAM

512K bytes

EERROM

2K bytes (Can upto 128K bytes or change to 2K/8K FRAM)

NVRAM

31 bytes

Watch Dog Timer

CPU Built-in

COM1

RS232: TXD, RXD, RTS, CTS, GND

COM2

RS485: D2+, D2-
