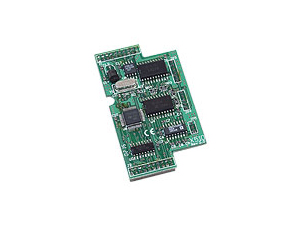

X508
1-Port RS-232 ( 5-Pin ) add 4-channel D/I, 4-channel D/O FEATURES: (For 7188XB,7188XG,7188EX,7188EG) SPECIFICATIONS: Parallel I/O RS-232 port : 1 COM3 : TXD, RXD, RTS, CTS, GND 16550 compatible Internal FIFO : 16 bytes Transmission speed: 115.2K BPS max. Isolated : none Digital Input Channels : 4 Channels : 4 Input Voltage: Logic high level (3.5V~30V), Logic low level (0V~1V) Isolated : none Digital Output Channels: 4 Open-collector Output : 100 mA / 30V max Isolated : none Power consumption : 0.7 W
$116.00

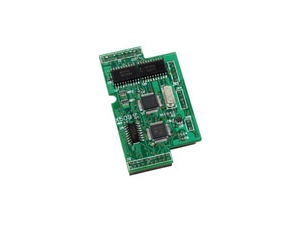

X509
2-Port RS-232 ( 3-Pin ) add 4-channel D/I, 4-channel D/O FEATURES: (For 7188XB,7188XG,7188EX,7188EG) SPECIFICATIONS: Parallel I/O RS-232 port : 2 COM3 : TXD, RXD, GND COM4 : TXD, RXD, GND 16550 compatible Internal FIFO : 16 bytes Transmission speed: 115.2K BPS max. Isolated : none Digital Input Channels : 4 Input Voltage: Logic high level (3.5V~30V), Logic low level (0V~1V) Isolated : none Digital Output Channels: 4 Open-collector Output : 100 mA / 30V max Isolated : none Power consumption : 0.7 W
$165.00

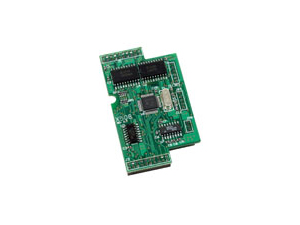

X510-256
1-Port RS-232 ( 3-Pin ) add 5-channel D/I, 5-channel D/O , EEPROM 128K x2 FEATURES: (For 7188XB,7188XG,7188EX,7188EG) SPECIFICATIONS: Parallel I/O RS-232 port : 1 COM3 : TXD, RXD, GND 16550 compatible Internal FIFO : 16 bytes Transmission speed: 115.2K BPS max. EEPROM: 128K * 2 bytes Endurance:100,000 Write Cycles/Page Data Retention: 40 Years Isolated : none Digital Input Channels : 5 Input Voltage: Logic high level (3.5V~30V), Logic low level (0V~1V) Isolated : none Digital Output Channels: 5 Open-collector Output : 100 mA / 30V max Isolated : none Power consumption : 0.7 W
$138.00
X510-128
1-Port RS-232 ( 3-Pin ) add 5-channel D/I, 5-channel D/O , EEPROM 128K x1 FEATURES: (For 7188XB,7188XG,7188EX,7188EG) SPECIFICATIONS: Parallel I/O RS-232 port : 1 COM3 : TXD, RXD, GND 16550 compatible Internal FIFO : 16 bytes Transmission speed: 115.2K BPS max. EEPROM: 128K * 1 bytes Endurance:100,000 Write Cycles/Page Data Retention: 40 Years Isolated : none Digital Input Channels : 5 Input Voltage: Logic high level (3.5V~30V), Logic low level (0V~1V) Isolated : none Digital Output Channels: 5 Open-collector Output : 100 mA / 30V max Isolated : none Power consumption : 0.7 W
$123.00

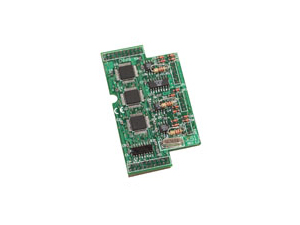

X511
3-Port RS-485 FEATURES: (For 7188XB,7188XG,7188EX,7188EG) SPECIFICATIONS: Parallel I/O RS-485 ports : 3 COM3 : RS-485 : Data+, Data- COM4 : RS-485 : Data+, Data- COM5 : RS-485 : Data+, Data- 16550 compatible Internal FIFO : 16 bytes Transmission speed: 115.2K BPS max. Self-Turner ASIC inside : Yes Isolated : none
$133.00

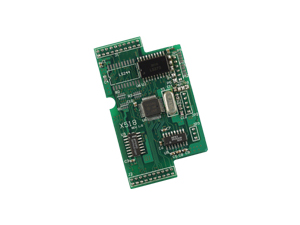

X518
1-Port RS-232 ( 5-Pin ) add 8-channel D/O FEATURES (For 7188XB,7188XG,7188EX,7188EG) SPECIFICATIONS: Parallel I/O RS-232 port : 1 COM3 : TXD, RXD, RTS, CTS, GND 16550 compatible Internal FIFO : 16 bytes Transmission speed: 115.2K BPS max. Isolated : none Digital Output Channels: 8 Open-collector Output : 100 mA / 30V max Isolated : none
Appelez-nous

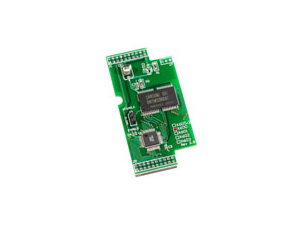

X560
8MB Flash and 3-channel RS-232 ( 3-Pin ) FEATURES: (For 7188XA,7188XC,7188EX,7188EG) SPECIFICATIONS: Flash Memory Memory size : 8 M Bytes Endurance : 1,000,000 Program/Erase Cycles Data Retention : 10 years RS-232 ports : 3 COM3 : TXD, RXD, GND COM4 : TXD, RXD, GND COM5 : TXD, RXD, GND 16550 compatible Internal FIFO : 16 bytes for each COM port Transmission speed: 115.2K BPS max. Isolated : none *****Without Case*******
$152.00
