Instruments pour PC | Oscilloscope | HS4-DIFF-10-W5
HS4-DIFF-10

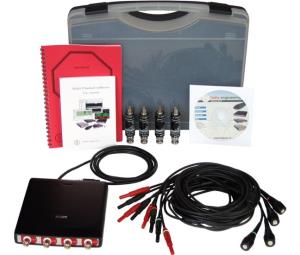

The Handyscope HS4 DIFF is a 4 channel differential USB oscilloscope with a maximum sampling speed of 50MS/s and 128 KSamples memory per channel. The differential input channels enable safely measuring, without risk of creating a short circuit through the oscilloscope. The Handyscope HS4 DIFF is delivered with a complete measurement software package that offers all you need for your measurement applications.

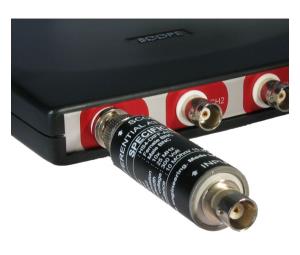

DIFFERENTIAL INPUTS
The Handyscope HS4 DIFF features four isolated differential input channels. This makes it the ideal instrument to perform measurements in high voltage circuits, amplifiers, switch mode power supplies, power inverters, etc. No more risk of creating short circuits through your oscilloscope!
combining multiple handyscope HS4s
With the Multi Channel oscilloscope software, you are not limited to number of channels of one oscilloscope. It is possible to combine two or more oscilloscopes to form a combined instrument. Once the instruments are combined, the resulting single oscilloscope works just like a normal oscilloscope. There is no limit to the number of channels in a combined oscilloscope.
Combining is possible with the following instruments:
* Wifiscope WS6
* Wifiscope WS5
* Handyscope HS6 DIFF
* Handyscope HS5
* Handyscope HS4 DIFF
* Handyscope HS4
* Handyscope HS3 (from serial number 14266)
View all ways to combine instruments click here
Base model:
Handyscope HS4-DIFF-50 50 MS/s model
Handyscope HS4-DIFF-25 25 MS/s model
Handyscope HS4-DIFF-10 10 MS/s model
Handyscope HS4-DIFF-5 5 MS/s model
View full specifications of HS4-DIFFclick here
Spécifications:
memory
128 KSamples memory per channel
Resolution
16/14/12 bits Resolution
Sampling Rate
up to 50MS/s sampling, 50 MHz bandwidth
Bus Type
USB
