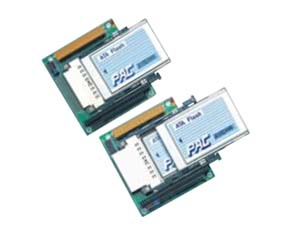

PCM-229D1: PC/104 Bus 2-slot PCMCIA Card Drive

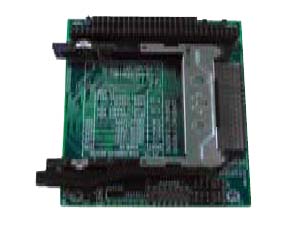

PCM-225/1: PC/104+ Bus 1-slot Hot Swap PCMCIA Card Drive

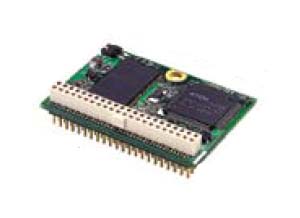

MODEL NO : IDE-FD015G-019 IDE-FDxxxx-019/IDE-FDxxxx-419/IDE-FDxxxx-426 IDE-FDxxxx-030-yyy/IDE-FDxxxx-432-yyy Note 1: xxxx: Capacity, yyy: Connector type Note 2: An example of part number IDE-FD128M-432-LMF Specification: xxxx Capacity: 032M for 32MB; 015G for 1.5GB, Available from 32MB up to 2GB yyy Connector type LFD Cotroller side with Female connector, rear side without connector LDF Controller side without connector, rear side with Female connector LMD Controler side with Male connector, rear side without connector LDM Controller side without connector, rear side with Male connector LMF Controller side with Male connector, rear side with Female connector LFM Controller side with Female connector, rear side sith Male connector COMPARISON   Connector V/H Housing Thickness, Height Model 019 40-pin IDE Vertical Yes 6.2mm/27.2mm Model 030 40-pin IDE Horizontal No Subjects to connector type/30.4mm Model 419 40-pin IDE Vertical Yes 6.5mm/27.5mm Model 426 40-pin IDE Vertical Yes 8.5mm/33.0mm Model 432 40-pin IDE Horizontal No Subjects to connector type/32.6mm

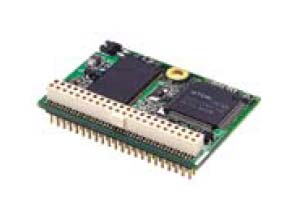

MODEL NO : DE-FD064M-030-LFM IDE-FDxxxx-019/IDE-FDxxxx-419/IDE-FDxxxx-426 IDE-FDxxxx-030-yyy/IDE-FDxxxx-432-yyy Note 1: xxxx: Capacity, yyy: Connector type Note 2: An example of part number IDE-FD128M-432-LMF Specification: xxxx Capacity: 032M for 32MB; 015G for 1.5GB, Available from 32MB up to 2GB yyy Connector type LFD Cotroller side with Female connector, rear side without connector LDF Controller side without connector, rear side with Female connector LMD Controler side with Male connector, rear side without connector LDM Controller side without connector, rear side with Male connector LMF Controller side with Male connector, rear side with Female connector LFM Controller side with Female connector, rear side sith Male connector COMPARISON   Connector V/H Housing Thickness, Height Model 019 40-pin IDE Vertical Yes 6.2mm/27.2mm Model 030 40-pin IDE Horizontal No Subjects to connector type/30.4mm Model 419 40-pin IDE Vertical Yes 6.5mm/27.5mm Model 426 40-pin IDE Vertical Yes 8.5mm/33.0mm Model 432 40-pin IDE Horizontal No Subjects to connector type/32.6mm

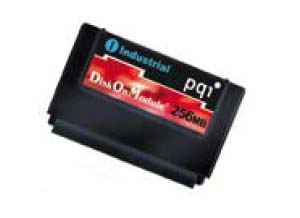

MODEL NO : DE-FD256M-426 IDE-FDxxxx-019/IDE-FDxxxx-419/IDE-FDxxxx-426 IDE-FDxxxx-030-yyy/IDE-FDxxxx-432-yyy Note 1: xxxx: Capacity, yyy: Connector type Note 2: An example of part number IDE-FD128M-432-LMF Specification: xxxx Capacity: 032M for 32MB; 015G for 1.5GB, Available from 32MB up to 2GB yyy Connector type LFD Cotroller side with Female connector, rear side without connector LDF Controller side without connector, rear side with Female connector LMD Controler side with Male connector, rear side without connector LDM Controller side without connector, rear side with Male connector LMF Controller side with Male connector, rear side with Female connector LFM Controller side with Female connector, rear side sith Male connector COMPARISON   Connector V/H Housing Thickness, Height Model 019 40-pin IDE Vertical Yes 6.2mm/27.2mm Model 030 40-pin IDE Horizontal No Subjects to connector type/30.4mm Model 419 40-pin IDE Vertical Yes 6.5mm/27.5mm Model 426 40-pin IDE Vertical Yes 8.5mm/33.0mm Model 432 40-pin IDE Horizontal No Subjects to connector type/32.6mm

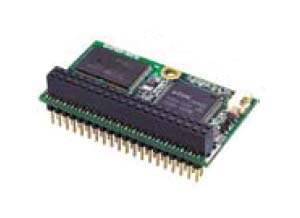

MODEL NO : IDE-FD064M-423-LFM IDE-FDxxxx-019/IDE-FDxxxx-419/IDE-FDxxxx-426 IDE-FDxxxx-030-yyy/IDE-FDxxxx-432-yyy Note 1: xxxx: Capacity, yyy: Connector type Note 2: An example of part number IDE-FD128M-432-LMF Specification: xxxx Capacity: 032M for 32MB; 015G for 1.5GB, Available from 32MB up to 2GB yyy Connector type LFD Cotroller side with Female connector, rear side without connector LDF Controller side without connector, rear side with Female connector LMD Controler side with Male connector, rear side without connector LDM Controller side without connector, rear side with Male connector LMF Controller side with Male connector, rear side with Female connector LFM Controller side with Female connector, rear side sith Male connector COMPARISON   Connector V/H Housing Thickness, Height Model 019 40-pin IDE Vertical Yes 6.2mm/27.2mm Model 030 40-pin IDE Horizontal No Subjects to connector type/30.4mm Model 419 40-pin IDE Vertical Yes 6.5mm/27.5mm Model 426 40-pin IDE Vertical Yes 8.5mm/33.0mm Model 432 40-pin IDE Horizontal No Subjects to connector type/32.6mm

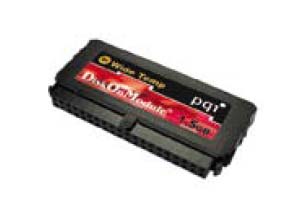

MODEL NO : IDE-FD015G-WT019 IDE-FDxxxx-WT019/IDE-FDxxxx-WT419/IDE-FDxxxx-WT432-yyy Note 1: xxxx: Capacity, yyy: Connector type Note 2: An example of part number IDE-FD096M-WT432-LMF Specification: xxxx Capacity: 032M for 32MB; 015G for 1.5GB, Available form 32MB up to 1.5GB yyy Connector type LFD Cotroller side with Female connector, rear side without connector LDF Controller side without connector, rear side with Female connector LMD Controler side with Male connector, rear side without connector LDM Controller side without connector, rear side with Male connector LMF Controller side with Male connector, rear side with Female connector LFM Controller side with Female connector, rear side sith Male connector COMPARISON   Connector V/H Housing Thickness, Height Model WT019 40-pin IDE Vertical Yes 6.2mm/27.2mm Model WT419 40-pin IDE Vertical Yes 6.5mm/27.5mm Model WT432 40-pin IDE Horizontal Yes Subjects to connector type/32.5mm

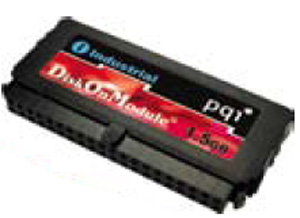

MODEL NO : IDE-FD128M-WT432-LFM IDE-FDxxxx-WT019/IDE-FDxxxx-WT419/IDE-FDxxxx-WT432-yyy Note 1: xxxx: Capacity, yyy: Connector type Note 2: An example of part number IDE-FD096M-WT432-LMF Specification: xxxx Capacity: 032M for 32MB; 015G for 1.5GB, Available form 32MB up to 1.5GB yyy Connector type LFD Cotroller side with Female connector, rear side without connector LDF Controller side without connector, rear side with Female connector LMD Controler side with Male connector, rear side without connector LDM Controller side without connector, rear side with Male connector LMF Controller side with Male connector, rear side with Female connector LFM Controller side with Female connector, rear side sith Male connector COMPARISON   Connector V/H Housing Thickness, Height Model WT019 40-pin IDE Vertical Yes 6.2mm/27.2mm Model WT419 40-pin IDE Vertical Yes 6.5mm/27.5mm Model WT432 40-pin IDE Horizontal Yes Subjects to connector type/32.5mm
