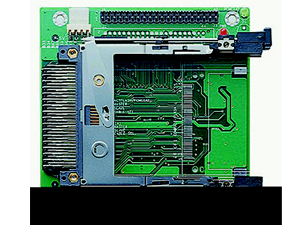

PC/104 One Slot Compact Flash to IDE ATA to standard IDE interfaceSupport one slot for 50 pins C.F. cards40 and 44 pins IDE and 4 pins power connectorsSupport Compact Flash cardsStandard PC/104 form factorPower Consumption: +5V @ 70 mA (typical)Operating Temperature: 0 - 70￠XCOptional hot-swappableWeight: 55gDimensions: 90(L) x 96(W)mm (3.54" x 3.78")

PC/104 One Slot PCMCIA&One Slot Compact Flash to ide PCMCIA (ATA) and compact flash (ATA) to standard IDE interfaceSupport one PCMCIA slot and one slot for 50 pins C.F. cards40 and 44 pins IDE and 4 pins power connectionSupport TYPE I/II/III ATA Flash, ATA HDD, Compact Flash cardsStandard PC/104 form factorPower consumption: +5V @ 70 mA (typical)Optional hot-swappableDimensions: 90(L) x 96(W)mm (3.54" x 3.78")Weight: 79g

PC/104 Two Slots PCMCIA to IDE ATA to standard IDE interfaceSupport two PCMCIA slots40 and 44 pins IDE and 4 pins power ConnectorsSupport Type I/II/III ATA Flash, ATA HDD, Compact Flash cards (an adaptor required)Standard PC/104 form factorPower consumption: +5V @ 70 mA (typical)Operating Temperature: 0 - 70 ￠XCOptional hot-swappableWeight: 92gDimensions: 90(L) x 96(W)mm (3.54" x 3.78")

PC/104 Two Slots OCMCIA Comply with PCMCIA V2.10 and JEIDA4.1 specificationPCMCIA socket (with ejector) accepts: TYPE I/II/III memory and I/O cards82C722G chipsBusy status LED16-bit data busSupport two PCMCIA slotsProgrammble 32KB SMD-type boot EEPROM BIOSBootable from Linear Flash card, ATA Flash , or ATA HDDDimensions: 90(L) x 96(W)mm , (3.54" x 3.78")Weight: 93g

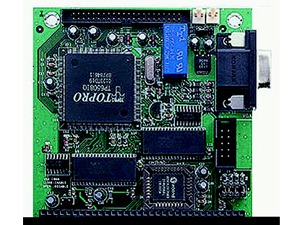

PC/104 VGA and LCD Module ChipsetTOPRO TP6508IQ Chip16-bit ISA busPanel Data bus: 24-bitDisplay: CRT and Flat Panel Mono/TFT/DSTN/LCDVideo Memory1 MB onboard Resolution up to 1024x768@256 colorsVGA BIOS Socket VGA BIOS Socket x 1LCD Initial DisplayVoltage to LCD after H-Sync signal outputDisplay Connector10-pin box header VGA connector 15-pin D-Type VGA connector44-pin (2.0mm) box header for LCD conntectorExpansions PC/104 standard compliantPower Requirements Single Voltage +5 V@200 mAOperating Temperature -20-60￠XCDimensions 90 mm (L) x96 mm (W) (3.54" x 3.78")

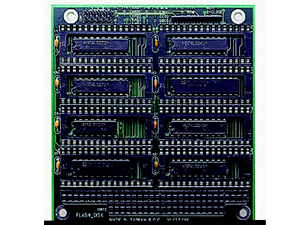

PC/104 Solid State Disk Module Emulates Drive A, B, C or DBootable from Drive A or Drive C simulationFlash DiskSupport Flash memory up to 8 socketsMaximum capacity 512KB x 8 = 4M byte by flash memoryType supportedSST 28SF040 ATMEL 29C040AEPROM DiskSupport EPROM memory up to 8 socketsMaximum capacity 1024KB x 8 = 8M byte by EPROMType supported: 27C010, 27C020, 27C040, 27C080 I/O, Memory, Type, Card ID selectable by JumperStack up to 4 pcs of ICOP-4086 in maximum to extend 4 times of capacityCompatible with BIOS level, without program modification or driversBus Interface PC/104 standard compliantConnector 8 sockets for flash/EPROMPower Requirements Single +5V @ 120 mADimensions 90 (L) x 96 (W) mm , (3.54" x 3.78")Weight 80gOperating Temperature -20 ~ +60￠XC

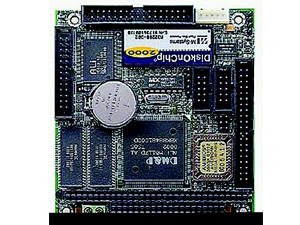

Embedded 386SX CPU All-in-One CPU module with 2S/DOC/4MB on board ChipsetChipset DM&P(ALi)M6117D (Embedded CPU, 386SX40 Compatible CPU ChipData Bus : 16-bitBus Speeds : 8 MHz, programmable up to 16 MHzDMA Channelw: 7Interrupt Levels: 15Watchdog Timer : from 30.5us to 512 secondsReal Time ClockBIOSAMI system BIOSRAM4 MB DRAM onboardI/OALi 5113 Super I/O ControllerTwo floppy drivesSupport two hard drives or enhanced IDE devicesOne RS-232 Port, one RS-232/RS485 portBi-directional parallel portBus InterfacePC/104 standard compliantConnector10-pin box header for RS-232 connector x 226-pin box header for parallel port5-pin header for PS/2 keyboard5-pin header for PS/2 mouse34-pin box header for floppy disk drive40-pin box header for Enhanced IDEOne socket for DiskOnChip/Flash DiskPower RequirementsSingle voltage +5 V @500mADimensions90(L)x96(W)mm.(3.54" x 3.78")Weight90gOperating Temperature-20~+60￠XC

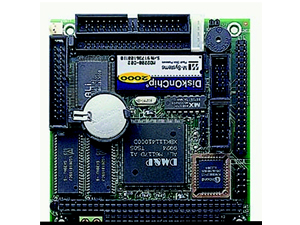

Embedded 386SX CPU All-in-One CPU module with 2S/DOC/4MB on board SoCDM&P(ALi)M6117D System-on-Chip CPU 386SX-60MHzData Bus: 16-bitBus Speeds: 8MHz, programmable up to 16MHzDMA Channels: 7Interrupt Levels: 15Watchdog Timer: 30.5uS to 512uSReal Time Clock with Lithium Battery BackupBIOS AMI BIOSSystem Memory Onboard 8MBBus Interface PC/104 Standard CompliantI/O InterfaceALi 5113 Super I/O ControllerEnhanced IDE interface x1RS232 port x2 (One RS232/485 optional TTL level)two floppy drivesParallel port x1FDD interface x1Bi-directional Parallel Port x116-bit GPIOConnectors10-pin box header for RS-232 port x226-pin box header for parallel port5-pin header for PS/2 keyboard5-pin header for PS/2 mouse10-pin box header for VGA port44-pin box header for flat panel VGA2-pin header for RS-485 port34-pin box header for FDD40-pin box header for enhanced IDEOne 32-pin socket for for DiskOnChip/FlashSSDBuilt-in Flash Disk up to 350KB or support DOM through IDE interface from 4MB up to 256MBsingle voltage +5 V @ 700 mABuilt-in NVSRAMDiskOnChipOne socket supporting-DiskOnChip 8MB~256MBFlash ROM 512KB (ST28040)NVSRAM selectable 128KB/256KB/512KBPower RequirementSingle Voltage +5V @600mABoard Weight 90gBoard Size 90mm X 96mm (3.54 x 3.77 inches)Operating Temperature -20￠X C ~ +60￠X C
