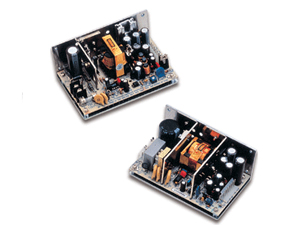

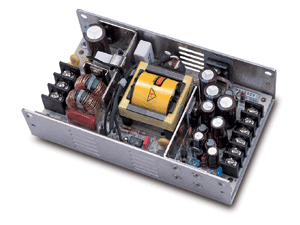

AC/DC Input Compact Size 70W Power Supply Input Table:*ACE-870A/870APInput Range:85~264V AC,47~63HZInput Current:1.5A@115V AC OR 0.8A@230V AC*ACE-870AInput Range:36V~72V DCInput Current:4A@48V DC*ACE870CInput Range:18~36V DCInput Current:6A@24V DC*ACE-865VInput Range:8~16V DCInput Current:12A@12V DCOutput Table:(at 50ºC)*ACE-870A/870APRated Load:5V,7A 12V,2.5A -5V,0.3A -12V 0.5AMax.Output:5V,10A 12V,4A -5V,0.5A -12V,0.5A*ACE-870TRated Load:5V,7A 12V,2.5A -5V,0.3A -12V 0.5A*ACE-870CRated Load:5V,7A 12V,2.5A -5V,0.3A -12V 0.5AMax.Output:12V,4A -5V,0.3A -12V,0.5A*ACE-865VRated Load:5V,6A 12V,2A -5V,0.3A -12V 0.5AMax.Output:12V,4A -5V,0.3A -12V,0.5ARipple and Noise :Less than 50mV@+5V; 100mV@OthersLine Regulation :The line regulation for each outputs are less than +/-1%@+5V; +/-2%@+12V; +/-3%@-5V & -12VLoad Regulation :Less than +/-3%@+5V & +12V, +/-5%@-5V & -12VEfficiency :Higher than 70%Hold-up Time (ACE-870A/870AP) :16ms (typical)@115V ACAltitude :0 ~ 10,000ftProtection :Over voltage protection. The trip point is around 5.7V ~ 7.0V outputMTBF :- ACE-870A : 296,831 Hours- ACE-870T : 277,126 Hours- ACE-870C : 276,238 Hours- ACE-865V : 246,485 HoursSafety :Meets UL 1950; CSA 22.2 No. 234, VDE EN 60950EMI :- ACE-870A/870AP : Meets FCC docket 20780 curve "B- ACE-870AP :Harmonic EN 61000-3-2Operating Temperature :0ºC ~ 50ºCStorage Temperature :-20ºC ~ 85ºCDimensions :81(W) x 50(H) x 127(D)mm; (3.2" x 2" x 5")

90W AC Input Power Supply Input / Output Table : (at 50ºC)*ACE/890A/890APInput Voltage:85~264V ACRated Load:+5V 10A +12 2.5A -12V 0.5AMax Output:+5V 12A +12V 4A -12V 1A*ACE-890CInput Voltage:18~36V DCRated Load:+5V 10A +12 2.5A -12V 0.5AMax Output:+5V 12A +12V 4A -12V 1A*ACE-890PInput Voltage:70V~132V DCRated Load:+5V 10A +12 2.5A -12V 0.5AMax Output:+5V 12A +12V 4A -12V 1A*ACE-890TInput Voltage:36V~72V DCRated Load:+5V 10A +12 2.5A -12V 0.5AMax Output:+5V 12A +12V 4A -12V 1A*ACE-890VInput Voltage:9V~16VRated Load:+5V 9A +12 2.5A -12V 0.5AMax Output:+5V 12A +12V 4A -12V 1A--ACE-890AP: min load +5VDC/1.5A, +12VDC,-12VDC/ 0.05ARipple and Noise :Less than +5V@50mV, +/-12V@100mV Less than +5V@100mV, -12V@150mV, -12V@200mV (ACE-890AP)Line Regulation :The line regulation for each output is less than +/-1%, while measuring at rated loading and +/-10% of input voltage changingLoad Regulation :Less than +/-1%@+5V and +/-5%@+/-12VEfficiency :Higher than 70%Hold-up Time (ACE-890A/890AP) :16ms (typical)@115V ACProtection :Over voltage protection. The trip point is around 5.7V~7.0V outputOperating Temperature :-20ºC ~70ºC (Derating curve will occur 50ºC ~70ºC)Storage Temperature :-20ºC ~85 ºCAltitude :0~10,000ftMTBF :- ACE-890A : 268,358 Hours- ACE-890P : 265,827 Hours- ACE-890T : 269,884 Hours- ACE-890C : 252,383 Hours- ACE-890V : 245,424 Hours- ACE-890AP : 50,000HoursSafety : Meets UL 1950, CSA 22.2 No. 234, VDE EN 60 950EMI :- Meets FCC docket 20780 curve "B", EN55022 "B"- Harmonic EN 61000-3-2 for ACE-890APEMS Standard (Designed to meet the following limits) :IEC 801-2 15KV (Air Discharge)- IEC 801-3, 10V/M- IEC 801-4, 2KV- IEC 801-5, 2KVDimensions :89(W) x 39(H) x 152.4(D)mm; (3.5" x 1.5" x 6")

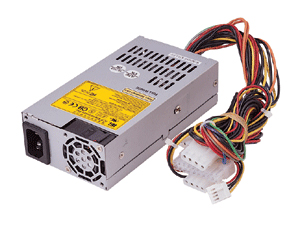

150W AT Power Supply full Range with PFC function Input / Output Table : (at 50ºCInput Range90V AC~264V AC full range (ACE-816AP/ACE-916AP)95V AC~132V AC, 180V AC~264V AC manual switch (ACE-816A/ACE-916A)ACE-816/916 Output RatingPIN1:+3.3V!O5%, Noise:50mvPIN2:+5V!O5%, Noise:50mvPIN3:+12V!O5%, Noise:120mvPIN4:-12V!O10%, Noise:120mvPIN5:+5Vsb!O5%, Noise:100mv[ACE-916A]Min:+5V 1.0A,+12V 0.2A,-12V 0AMax:+5V 15A,+12V 10A,-12V 0.3AThe output of +5V and +12V total output shall not exceed 146.4W, Total output maximum 150W[ACE-816A]Min:+3.3V 0.2A,+5V 1.0A,+12V 0.2A,-12V 0A,+5Vsb 0AMax:+3.3V 16A,+5V 15A,+12V 12A,-12V 0.3A,+5Vsb 2AThe output of +3.3V and +5V total output shall not exceed 61.5W, The +3.3V and +5V, +12V total output shall not exceed 136.4W, Total output maximum 150W[ACE-916AP]Min:+5V 1.0A,+12V 0.5A,-12V 0AMax:+5V 16A,+12V 6A,-12V 0.3AThe output of +12V and +5V total output shall not exceed 145W, Total output maximum 150W[ACE816AP]Min:+3.3V 0.3A,+5V 1.0A,+12V 0.3A,-12V 0A,+5Vsb 0AMax:+3.3V 10A,+5V 14A,+12V 4.2A,-12V 0.3A,+5Vsb 2AThe output of +3.3V and +5V total output shall not exceed 85W, Total output maximum 150WACE-815T Output RatingPIN1:+3.3V!O5%, Noise:50mv, Min:0.0A, Max:10.0APIN2:+5V!O5%, Noise:50mv, Min:0.0A, Max:14.0APIN3:+12V!O5%, Noise:120mv, Min:0.0A, Max:4.2APIN4:-5V!O5%, Noise:100mv, Min:0.0A, Max:0.3APIN5:-12V!O10%, Noise:120mv, Min:0.0A, Max:0.3APIN6:+5Vsb!O5%, Noise:100mv, Min:0.0A, Max:2.0A(+5V, +3.3V and +12V total output not exceed 135W)ACE-815C Output RatingPIN1:+3.3V!O5%, Noise:50mv, Min:0.0A, Max:4.0APIN2:+5V!O5%, Noise:50mv, Min:0.0A, Max:13.0APIN3:+12V!O5%, Noise:120mv, Min:0.0A, Max:2.5APIN5:-12V!O10%, Noise:120mv, Min:0.0A, Max:0.3APIN6:+5Vsb!O5%, Noise:100mv, Min:0.0A, Max:2.0A(+5V, +3.3V and +12V total output not exceed 84W)Hold-up time :17ms min. (AC Input Power Supply only)Efficiency :68% typ. (ACE-816AP/916AP); 72% typ. (ACE-816A/916A)Protection :Over Voltage/Load Protection and Short Circuit ProtectionTTL signal compatible power good signalVibration :10-55Hz at 2G 3min. period, 30 min. along X, Y and Z axis.Shock :10G for 11ms once on each X, Y and Z axis.Built-in cooling fanPower Connector:ATX (ACE-816A/AP/815T/815C) ; P8/P9 (ACE-916A/AP)MTBF :100,000hrs at 25ºCSafety :Meets UL 1950, CSA 22.2 Level 3,TUV, CCC.EMI :Meets FCC class "B",EN55022 class "B" Meets Harmonic EN61000-3-2 (ACE-815AP, ACE-915AP)EMS Standard :meet- IEC 801-2 8KV(Air Discharge)- IEC 801-3 3V/M criteria A- IEC 801-4,2KV criteria B- IEC 801-5,2KV criteria BOperating Temp. : 0-50ºC

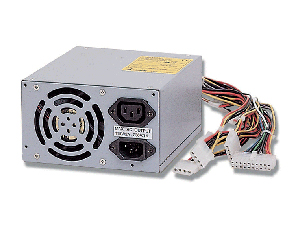

Medical PS/2 type 250W power supply Input Voltage :ACE-828M: 90~130V AC or 180~260V AC(Auto Switch)ACE-925M: 90~264VAC (Full-Range)Output Table : (at 40ºC)*ACE-828M:Rated:+5V30A, +12V15A, -12V0.5A, -5V0.5A, +3.3V8A, +5Vsb0.72A*ACE-925MRated:+5V28A, +12V10A, -12V1A, -5V1A,+3.3VLoad Regulation:*ACE-828M:+5V,+12V*ACE-925M+5VLeakage Current :Primary to safety ground less than 500uA at 253V AC input, secondary ground to safety ground less than 100uA at 235V AC inputRipple and Noise :- ACE-828M : Less than 50mV@+5V and +3.3V; 100mV@Others- ACE-925M : The line regulation for each outputs are less than +/-1%Line Regulation :- ACE-925M : Less than !O1% for each output- ACE-828M : Less than !O2%@+12V, +/-1%@OthersEfficiency :Higher than 65%Altitude :0 ~ 10,000ftOver voltage protectionVibration :10 ~ 55Hz at 2G 3min. period, 30 min. along X, Y and Z axisImpact :10G for 20ms once on each X, Y and Z axisBuilt-in cooling fanMTBF :- ACE-828M : 177,287 Hours- ACE-925M : 132,648 HoursSafety :Meets UL 544, UL 2601, CSA 22.2 No.601, TUV (DIN. VDE 075T.1/12.91/EN 60 601-1:1990)EMI :Meets EN55011 class "B"EMS Standard (Designed to meet the following limits) :- IEC 801-2 4KV contact, 8KV Air Discharge- IEC 801-3, 3V/M, 26MHz to 1GHz- IEC 801-4, 2KV power mains- IEC 801-5, 2KV criteria BOperating Temperature :ACE-828M : -20ºC ~ 70ºC(Derating curve will occur 40ºC ~70ºC)ACCE-925M 0ºC ~ 70ºC(Derating curve will occur 40ºC ~ 70ºC)Storage Temperature :-40ºC ~ 75ºC

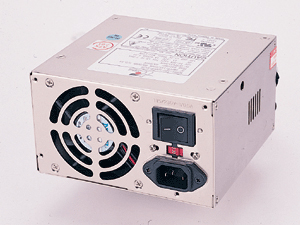

PS/2 280W ATX auto switching power supply Applications Input Voltage: 90 to 130V or 180 to 260V AC, auto switching Input Frequency: 47 to 63HZ Max. Output Current: Note: Combined max output for +5V and +3.3V is 150W. .Operation Temp: 0 to 70 C (32 to 158 F) EMI: FCC class B, EN55022 class B MTBF: More than 200,000 Hours

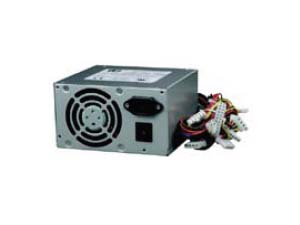

ACE-4860AP-RS 600W for high power consumption RAID / Multi-core system ATX 2.0 standard w/ new 20+4 ATX power and SATA connector design Multiple safety / EMC certificated High efficiency ACE-4860AP-RS: 600W AC-DC PS/2 type ATX Power Supply, with PFC   Input Voltage 95~132, 184~260, VAC Auto range Rated load +5V +12V -12V -5V +3.3V +5Vsb 0 1 0 0.5 0 0 Peak load +5V +12V -12V -5V +3.3V +5sb 30 12 1 1 24 3 Operating Temperature: 0 ~ 40˚C (Operating) MTBF: 100,000 hrs

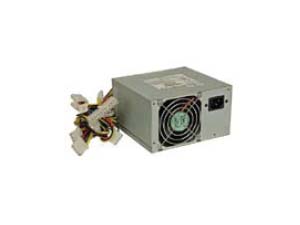

ACE-850AP-24-RS 100% Meet RoHS Compliance ATX 2.0 standard w/ new 20+4 ATX power and SATA connector design Multiple safety / EMC certificated High efficiency ACE-850AP-24-RS: 400W AC-DC PS/2 type ATX Power Supply, with PFC & on/off switch   Input Voltage 90 ~264VAC, Full Range Rated load +5V +12V -12V -5V +3.3V +5Vsb 3A 1A 0A 0A 4A 0A Peak load +5V +12V -12V -5V +3.3V +5sb 29A 18A 0.8A 0.3A 27A 2A Operating Temperature: 0 ~ 50˚C (Operating) MTBF: 100,000 hrs

ACE-841AP-S-RS 500 W for high power consumption RAID / Multi-core system ATX 2.0 standard w/ new 20+4 ATX power and SATA connector design Multiple safety / EMC certificate High efficiency ACE-841AP-S-RS: 500W AC-DC PS/2 type ATX Power Supply, with PFC   Input Voltage 90 ~ 264VAC, Full Range Rated load +5V +12V -12V -5V +3.3V +5Vsb 4A 0.5A 0 0 0.2A 0 Peak load +5V +12V -12V -5V +3.3V +5sb 33A 20A 1A 0.5A 28A 2 Operating Temperature: 0 ~ 50˚C (Operating) MTBF: 100,000 hrs
